Installation Instructions:
1. Find the location for the headlight relay under the hood between the headlights. The wiper door vacuum relay location is under the rear right-hand fender well or the left side of the firewall.
2. Mark the placement of the hoses so they can be re-connected later. The original hoses had striping to match the color coded dots on the original relay. The replacement valve is initialed and color-coded for ease of hose re-installation.

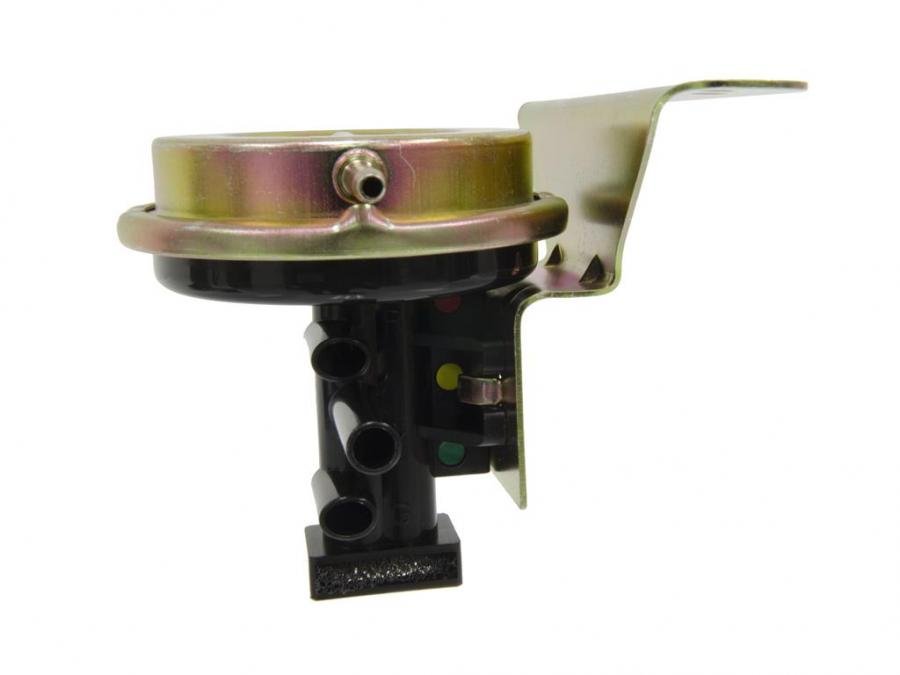

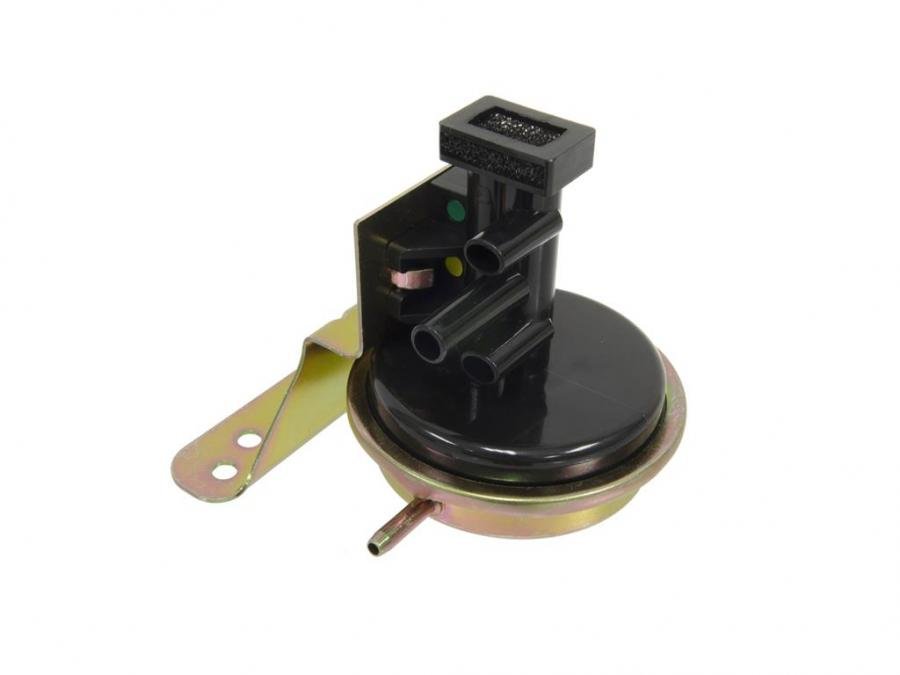

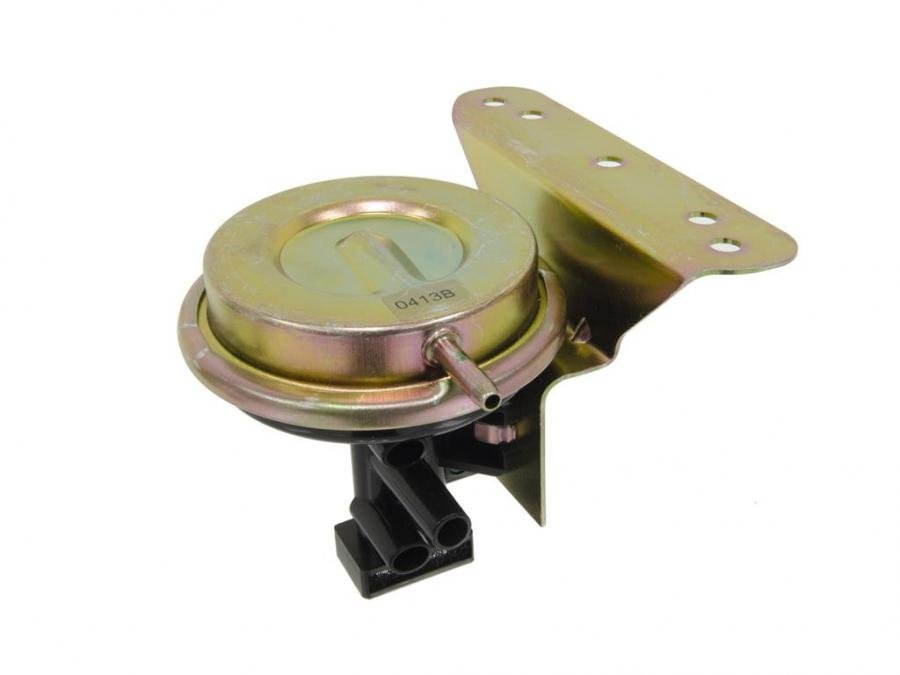

3. Unbolt the old relay and replace it with the new one. Re-connect the hoses in their proper positions. An extra filter has been provided as a spare. These filters can also be cleaned by using soap and water only. The bracket on this relay valve measures 4 3/16 inches long.
WIND SHIELD HEADLAMP HEAD LIGHT RELAYS
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
Corvette |
1968 - 1982 |
STANDARD
