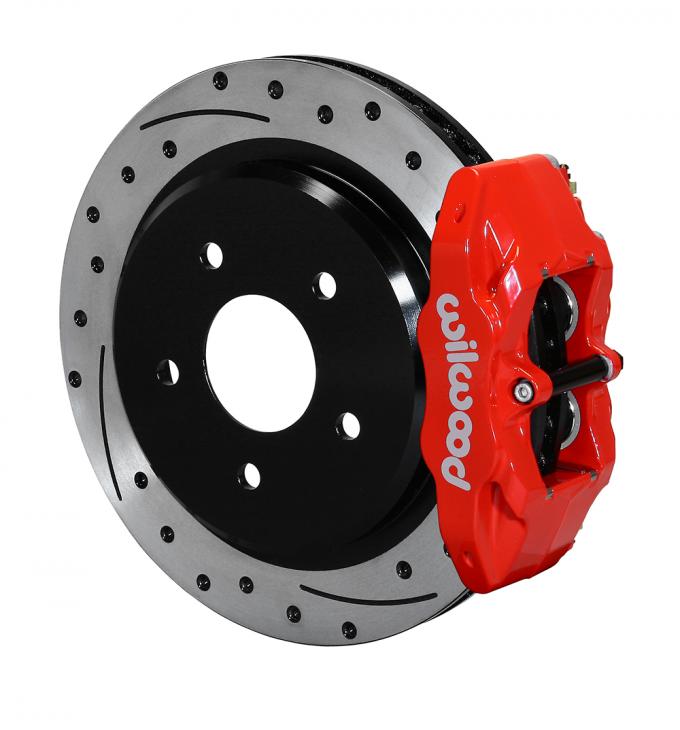

Wilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DR

Wilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DR
Wilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DRWilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DRWilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DRWilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DRWilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DR
$1,568.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 04/11/2024
Model: 3464457
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

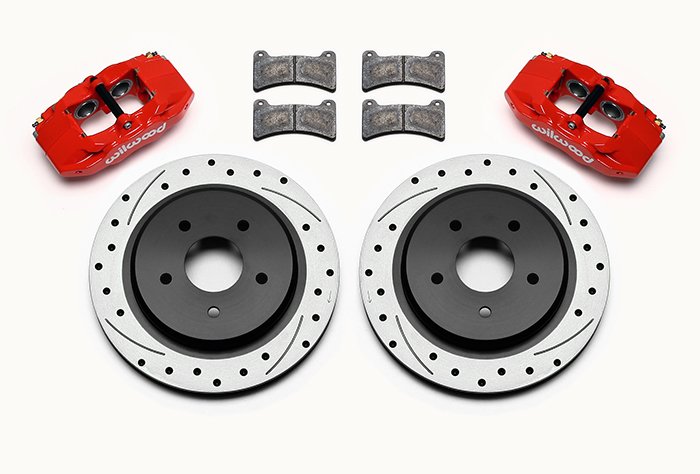

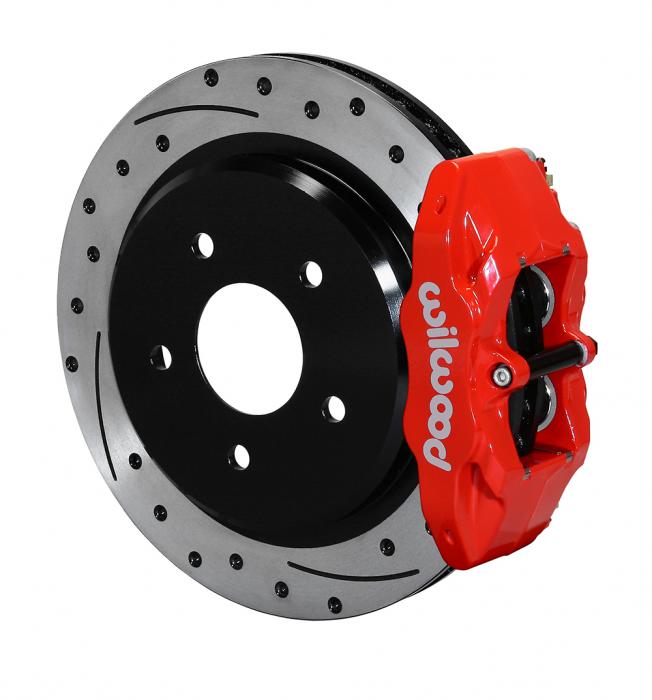

DPC56 rear caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the DPC56 calipers, 12.00” diameter SRP series drilled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the rear spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.

Fitment Notes

1. Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor.

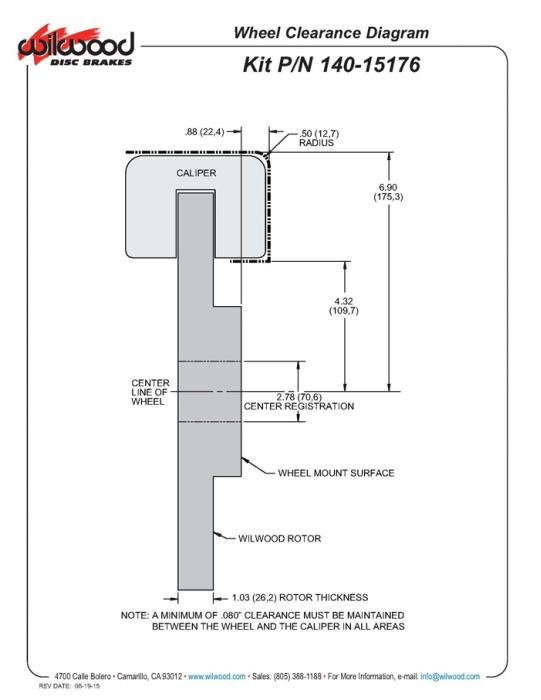

2. DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1124.pdf368.85KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet Corvette Base 2009 - 2013 KIT,REAR,VETTE,97-13,DPC5/6,12.00 ALLC5,BASEC6,W/PADS,SRP ROTOR,RED; RTR:12.01-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:DPC56, 4-PISTON, RED POWDER COAT
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor.
DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
Chevrolet Corvette Base 2005 - 2008 KIT,REAR,VETTE,97-13,DPC5/6,12.00 ALLC5,BASEC6,W/PADS,SRP ROTOR,RED; RTR:12.01-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:DPC56, 4-PISTON, RED POWDER COAT
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor.
DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
C-6 - Base
Chevrolet Corvette 1997 - 2004 KIT,REAR,VETTE,97-13,DPC5/6,12.00 ALLC5,BASEC6,W/PADS,SRP ROTOR,RED; RTR:12.01-IN DIA, SRP DRILLED ROTOR & HAT, DRILLED & SLOTTED; CLPR:DPC56, 4-PISTON, RED POWDER COAT
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor.
DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
C-5 & Z06 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 0.00
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 17
Mount Type Lug
Rear End Axle OEM
Rotor Diameter 12.01

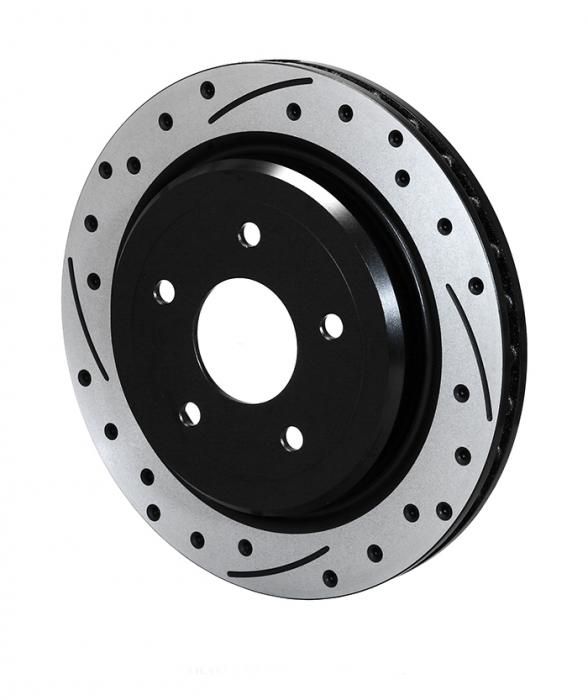

Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced No
Left Hand - Part No 160-14041-BK
Material Iron
Outside Diameter (in) 12.01
Right Hand - Part No 160-14040-BK
Style SRP Dimpled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor & Hat
Vane Count Vented
Width (in) 1.03
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2479
Replacement Piston 1 200-7515
Replacement Piston 2 200-7515
Wear Plate - Left Hand 300-5875
Wear Plate - Right Hand 300-5875

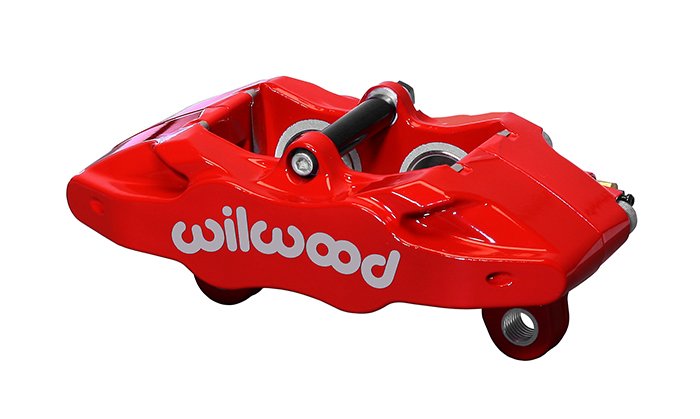

Kit Components & Specs / Calipers
Brake Pad Area (In²) 5.1
Brake Pad Plate 4812
Brake Pad Volume (In³) 1.71
Finish Color Red Powder Coat
Left Hand - Part No 120-13916-RD
Mount Type Lug
Pad Compound BP-10
Piston 1 Bore (in) 1.25
Piston 2 Bore (in) 1.25
Piston Area (In²) 2.46
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13916-RD
Type DPC56
Parts & Accessories / Brake Lines
Front Line Kit 220-8072, 220-15195

Reviews:

Write a Review
* Your Name:
* Email (This will not be displayed)
* Rating:
Comments:

Ask a question about

Wilwood Brakes 1997-2013 Chevrolet Corvette DPC56 Rear Replacement Caliper and Rotor Kit 140-15176-DR:

Frequently bought together

Corvette Waterfall Extension, Coupe, Gloss Black, 2005-2013
Model: 1025769
Condition: NEW
$769.99

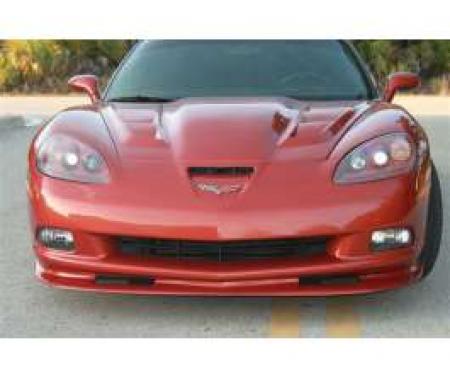

Corvette Bumper, Front, Z06 Design, 2005-2013
Model: 3116252
Condition: NEW
$2,707.99 ea
05-12 Grand Sport Front Fender - Fiberglass (hl) - Left
Model: 4929301
Condition: NEW
$1,174.99 ea

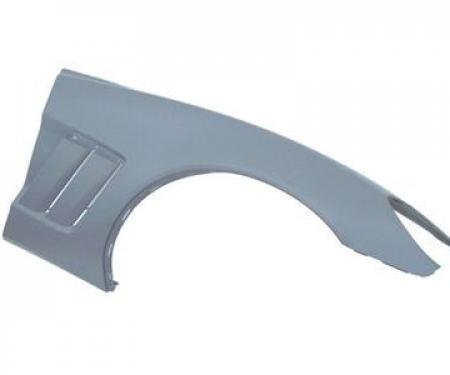

05-12 Grand Sport Front Fender - Fiberglass (hl) - Right
