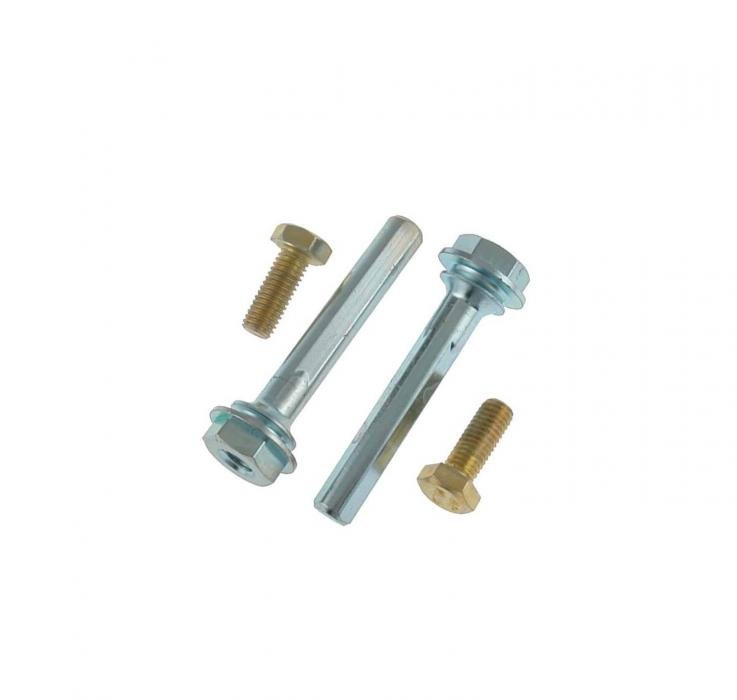

Carlson guide pins are produced with OE tolerances so the brake system functions properly. If everything does not line up perfectly, there could be drag in the system.
| Make | Model | Years |
| Chevrolet | Corvette | 1997 - 2004 |
| Caliper Bolt Head Type | Hex |
| Color | Zinc |
| Diameter (IN) | Bolt: 1/2 Pin: 5/9 |
| Dust Boots Included | No |
| Head Size (IN) | 1/2 |
| Head Size (MM) | 13 |
| Instructions Included | No |
| Length (in) | Bolt: 1, Pin: 2-1/2 |
| Length (mm) | Bolt: 25.4, Pin: 63.5 |
| Material | Steel |
| Number of Bolts | 2 |
| Number of Sleeves | 0 |
| Nuts Included | No |
| Shoulder Length (IN) | 0 |
| Sleeve Included | No |
| Thread Length (IN) | 5/6 |
| Thread Length (MM) | 21.1 |
| Thread Size | M8-1.25 |
| Washers Included | No |
