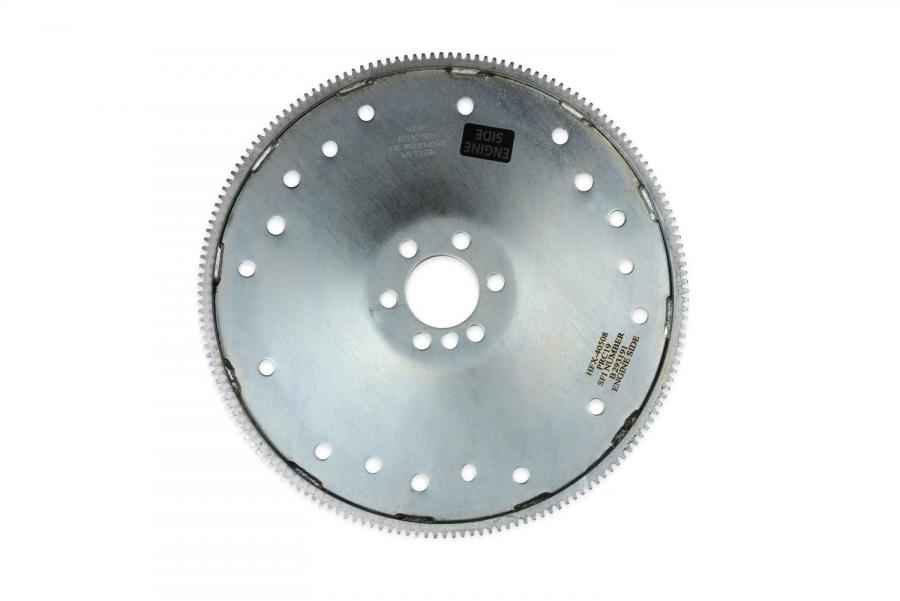

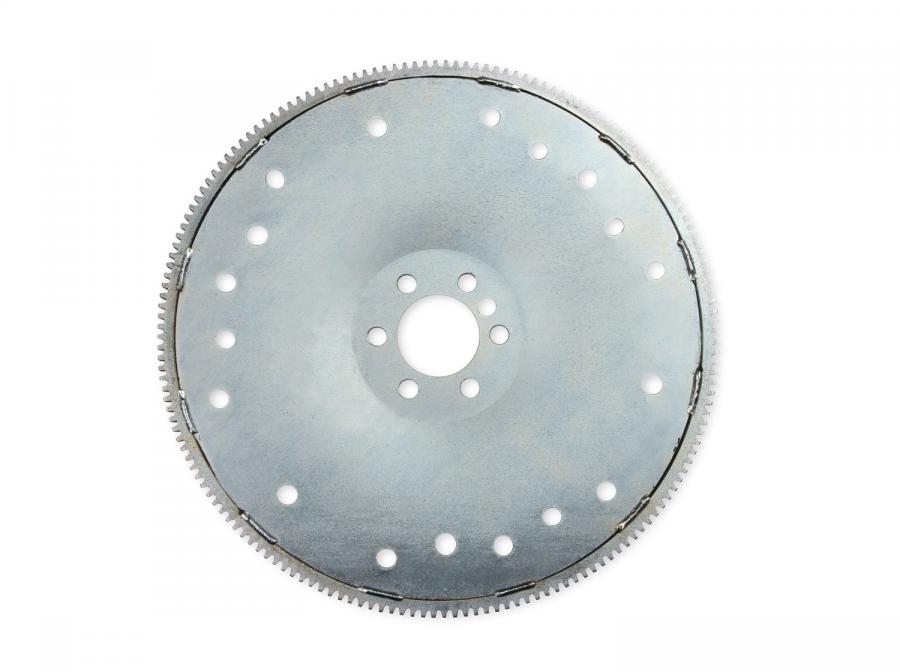

Hays Steel SFI Certified Flexplate, GM LS Engines 40-508

Hays Steel SFI Certified Flexplate, GM LS Engines 40-508
Hays Steel SFI Certified Flexplate, GM LS Engines 40-508Hays Steel SFI Certified Flexplate, GM LS Engines 40-508Hays Steel SFI Certified Flexplate, GM LS Engines 40-508
$399.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)18 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/24/2024
Model: 4006839
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Hays SFI Approved heavy duty flexplates for are constructed of a thicker than stock steel plate, enabling them to withstand the stress of high-stall torque converters and high-RPM engines. While factory stock plates tend to crack around the crankshaft hub when punished under high torque and RPM conditions, the 4mm thick center plate utilized on a Hays flexplate handles the brute force. These flexplates are supplied with a precision double welded ring gear and feature multiple engine and transmission bolt patterns. All Hays flexplates are zinc-dichromate plated to resist corrosion and are SFI certified under specification 29.1.
Features:
  • SFI-approved – legal for use in racing classes that require SFI certification

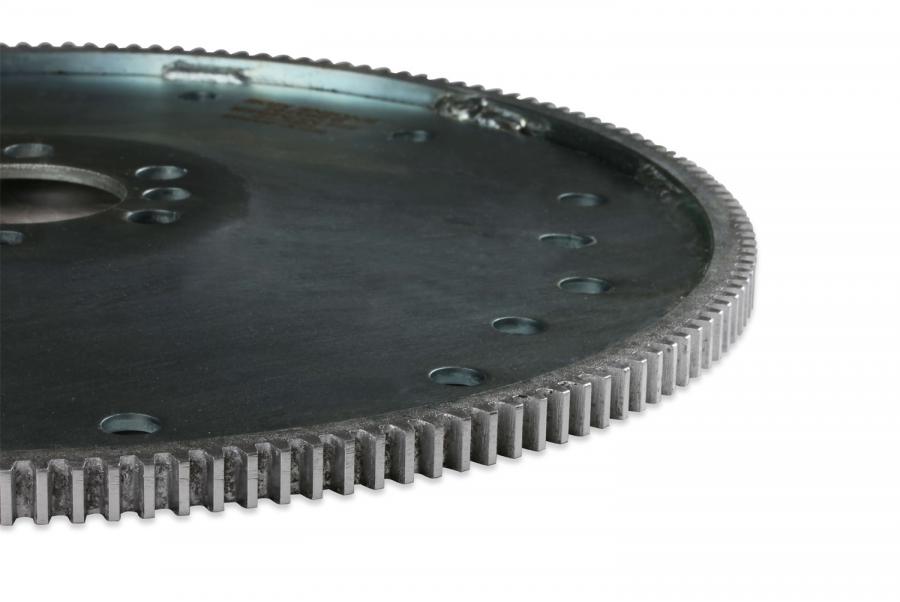

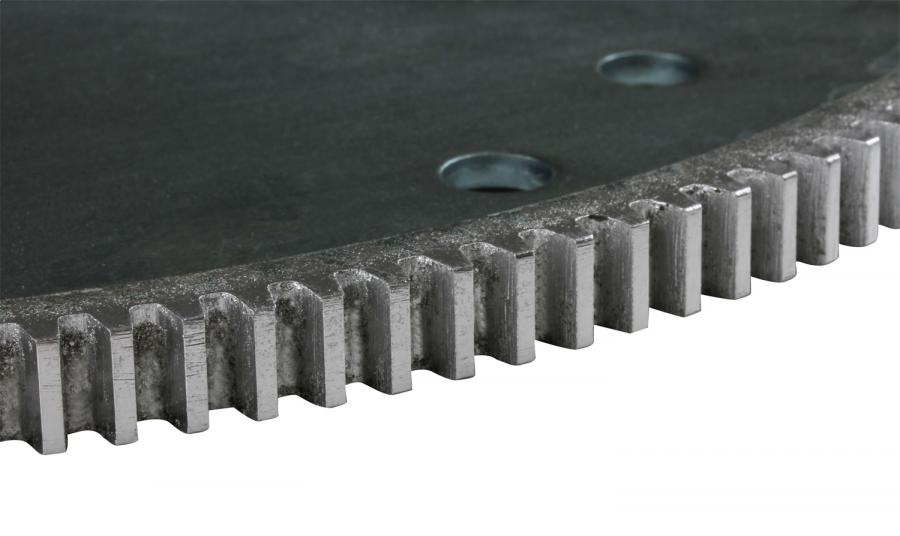

  • Flexplate features a precision double welded ring gear
  • Has 4mm thick center plate to resist cracking near crankshaft flange
  • Zinc-dichromate plated to resist corrosion
  • CAD designed to provide optimum performance and reliability
  • Available in Internal or External balanced versions
  • Applications offered for a wide variety of engine and transmission bolt patterns
IS NOT direct replacement for "long crank" LS engines. (1999-2000 6.0L)
Installation Notes:
IS NOT direct replacement for "long crank" LS engines. (1999-2000 6.0L)

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet Corvette 427 Limited Edition Z06 2008 7.0L / 427 / V8
Chevrolet Corvette 427 2013 7.0L / 427 / V8
Chevrolet Corvette Base 2005 6.0L / 364 / V8
Chevrolet Corvette Base 2006 6.0L / 364 / V8
Chevrolet Corvette Base 2007 6.0L / 364 / V8
Chevrolet Corvette Base 2008 6.2L / 376 / V8
Chevrolet Corvette Base 2009 6.2L / 376 / V8
Chevrolet Corvette Base 2010 6.2L / 376 / V8
Chevrolet Corvette Base 2011 6.2L / 376 / V8
Chevrolet Corvette Base 2012 6.2L / 376 / V8
Chevrolet Corvette Base 2013 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2010 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2011 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2012 6.2L / 376 / V8
Chevrolet Corvette Grand Sport 2013 6.2L / 376 / V8
Chevrolet Corvette Stingray 2014 6.2L / 376 / V8
Chevrolet Corvette Stingray 2015 6.2L / 376 / V8
Chevrolet Corvette Z06 Carbon 2011 7.0L / 427 / V8
Chevrolet Corvette Z06 2006 7.0L / 427 / V8
Chevrolet Corvette Z06 2007 7.0L / 427 / V8
Chevrolet Corvette Z06 2008 7.0L / 427 / V8
Chevrolet Corvette Z06 2009 7.0L / 427 / V8
Chevrolet Corvette Z06 2010 7.0L / 427 / V8
Chevrolet Corvette Z06 2011 7.0L / 427 / V8
Chevrolet Corvette Z06 2012 7.0L / 427 / V8
Chevrolet Corvette Z06 2013 7.0L / 427 / V8
Chevrolet Corvette Z06 2015 6.2L / 376 / V8
Chevrolet Corvette Z51 2014 6.2L / 376 / V8
Chevrolet Corvette Z51 2015 6.2L / 376 / V8
Chevrolet Corvette ZR1 2009 6.2L / 376 / V8
Chevrolet Corvette ZR1 2010 6.2L / 376 / V8
Chevrolet Corvette ZR1 2011 6.2L / 376 / V8
Chevrolet Corvette ZR1 2012 6.2L / 376 / V8
Chevrolet Corvette ZR1 2013 6.2L / 376 / V8

Specifications:

# of Teeth 168
Application Chevrolet
Bolt Circle 3 x 10.75 inch
Bolt Pattern GM 10-3/4", GM 10-1/2", GM 11-1/2", GM 11-1/8"
Centerplate Thickness 4 mm
Emission Code 5
Engine GM Small Block Gen III/IV (LS Based)
Engine Balance Internal
Finish Silver
Material Steel
Part Type Automatic Transmission Flexplate
Product Type Flexplates
Proposition 65 www.P65Warnings.ca.gov
SFI Approved Yes
SFI Certification 29.1
Style Quick Launch
Transmission 4L60E/4L65E
Warranty 90 Day
