Download Name | File Size |
199r11317.pdf | 165.27KB |
Make | Model | Submodel | Years | Engine |
Chevrolet | Corvette | Base | 1955 | 3.8L / 235 / L6 |
Chevrolet | Corvette | Base | 1962 | 5.3L / 327 / V8 |
Chevrolet | Corvette | Base | 1963 | 5.3L / 327 / V8 |
Chevrolet | Corvette | Base | 1964 | 5.3L / 327 / V8 |
Chevrolet | Corvette | Base | 1965 | 5.3L / 327 / V8 6.5L / 396 / V8 |
Chevrolet | Corvette | Base | 1966 | 5.3L / 327 / V8 7.0L / 427 / V8 |
Chevrolet | Corvette | Base | 1967 | 5.3L / 327 / V8 7.0L / 427 / V8 |
Chevrolet | Corvette | Base | 1968 | 5.3L / 327 / V8 7.0L / 427 / V8 5.4L / 327 / V8 |
Chevrolet | Corvette | Base | 1969 | 7.0L / 427 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1970 | 7.4L / 454 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1971 | 7.4L / 454 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1972 | 7.4L / 454 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1973 | 7.4L / 454 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1974 | 7.4L / 454 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1977 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1978 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1979 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1980 | 5.0L / 305 / V8 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1981 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1982 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1984 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Base | 1985 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Collector's Edition | 1982 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Indianapolis 500 Pace Car | 1978 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Silver Anniversary Edition | 1978 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Stingray | 1975 | 5.7L / 350 / V8 |
Chevrolet | Corvette | Stingray | 1976 | 5.7L / 350 / V8 |

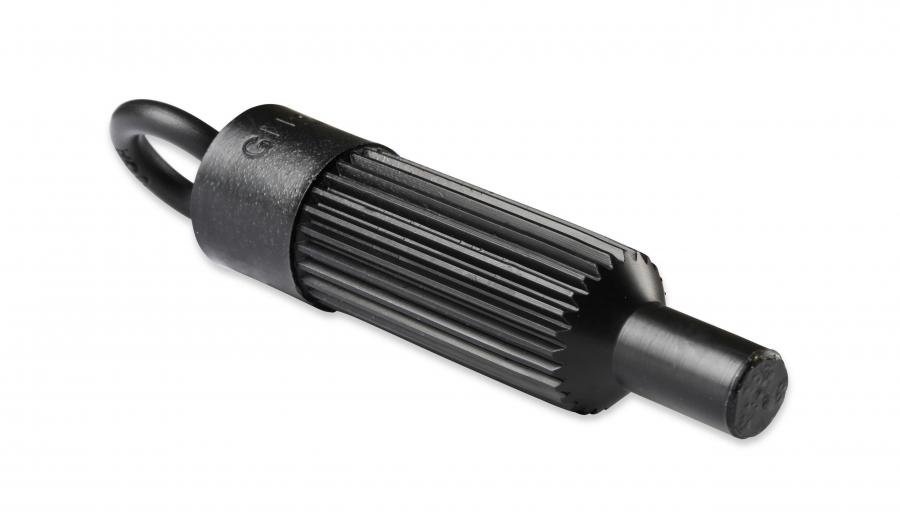

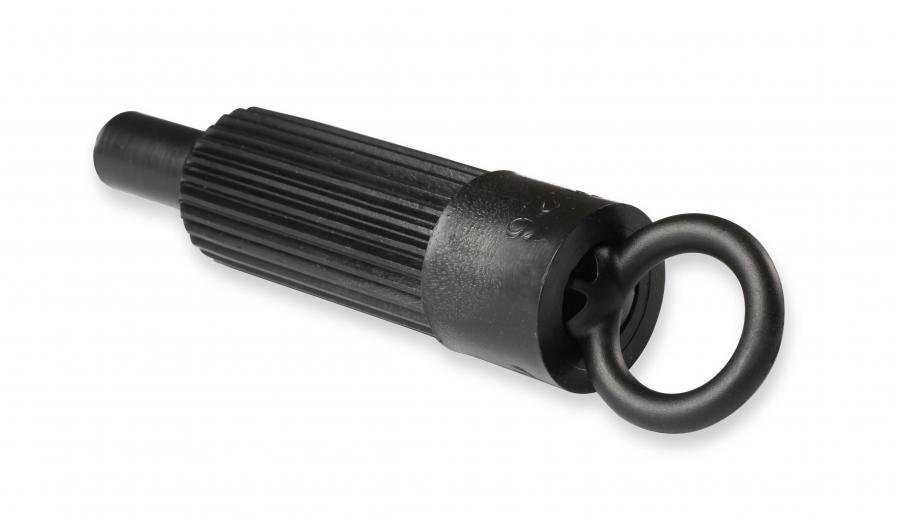

Alignment Tool Included | Yes |
Application | GM |
Color | Black |

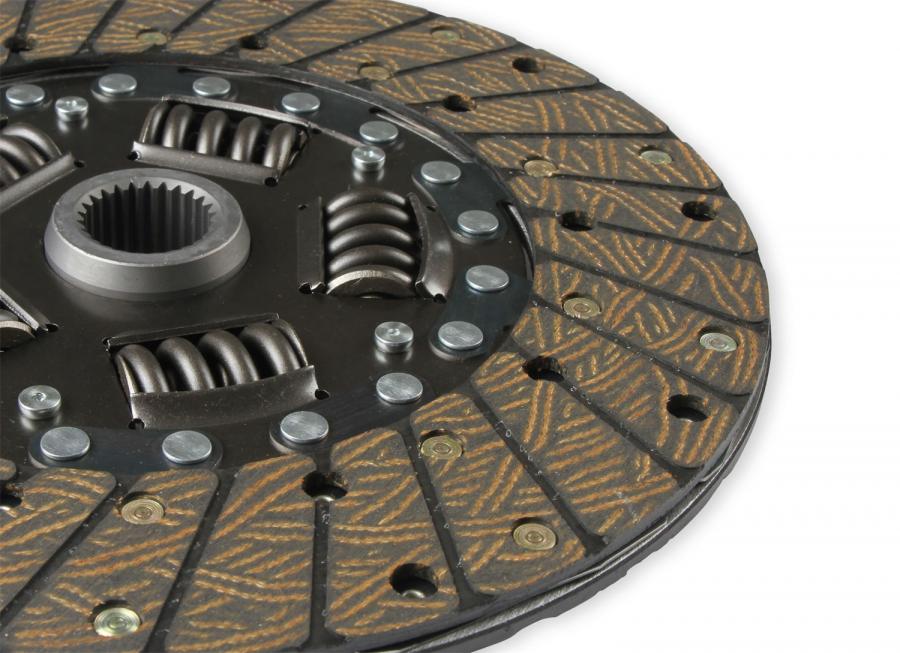

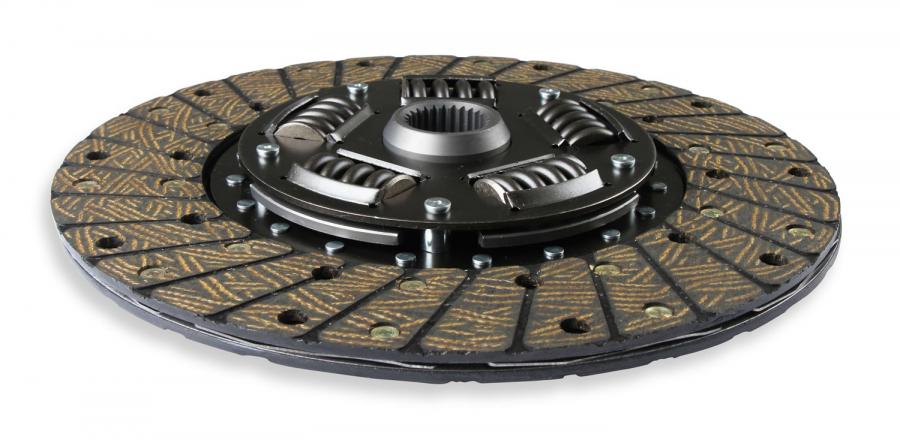

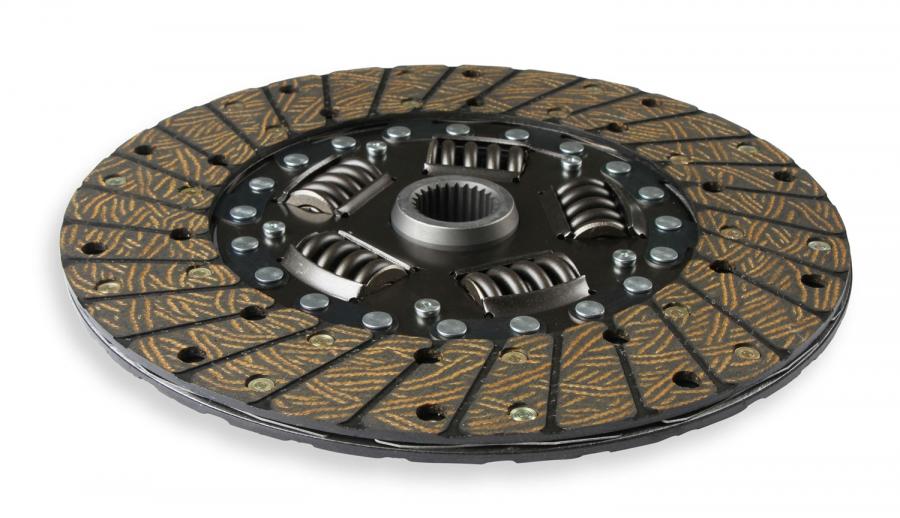

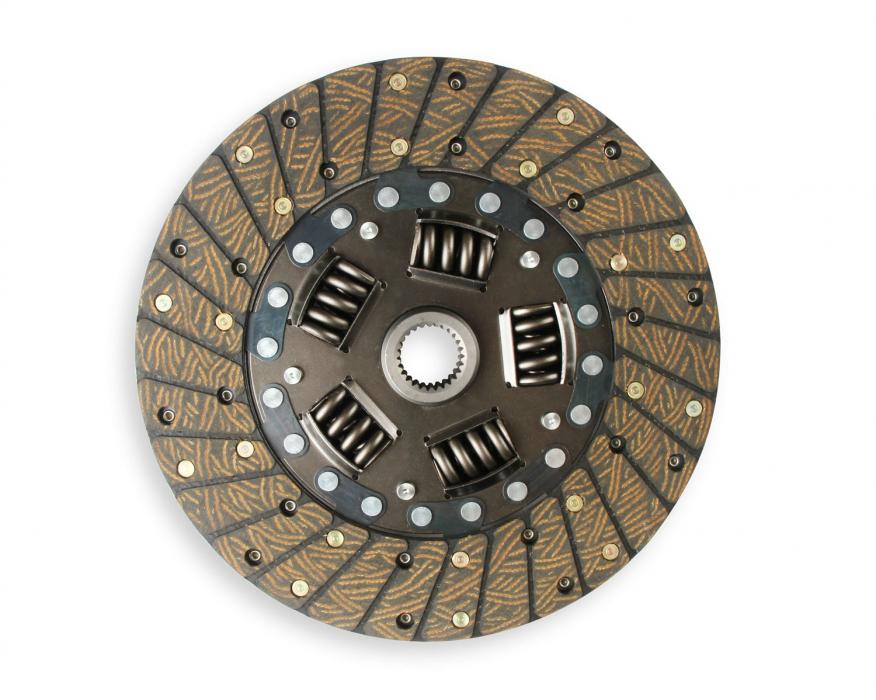

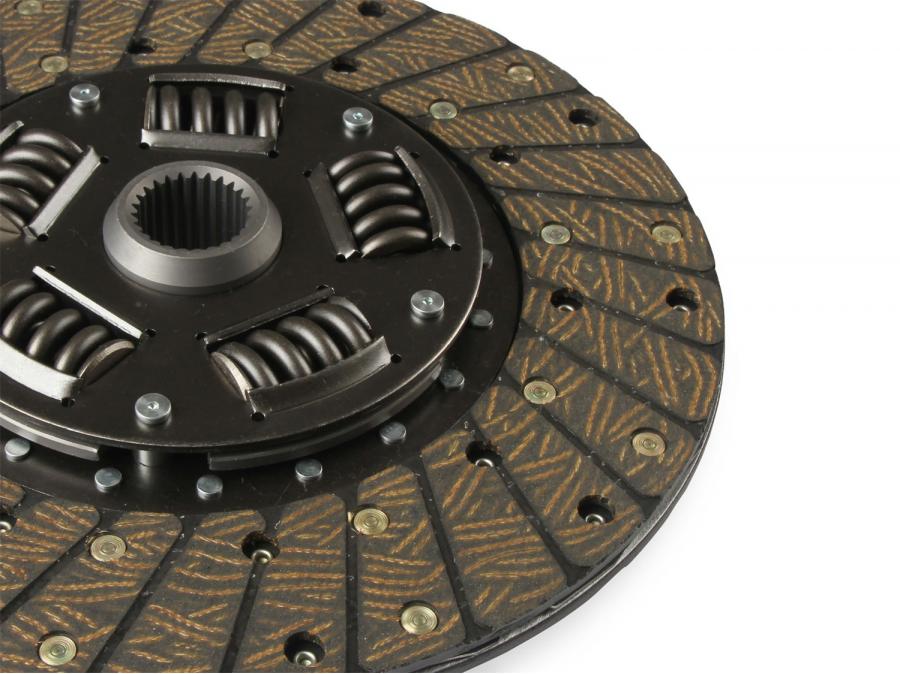

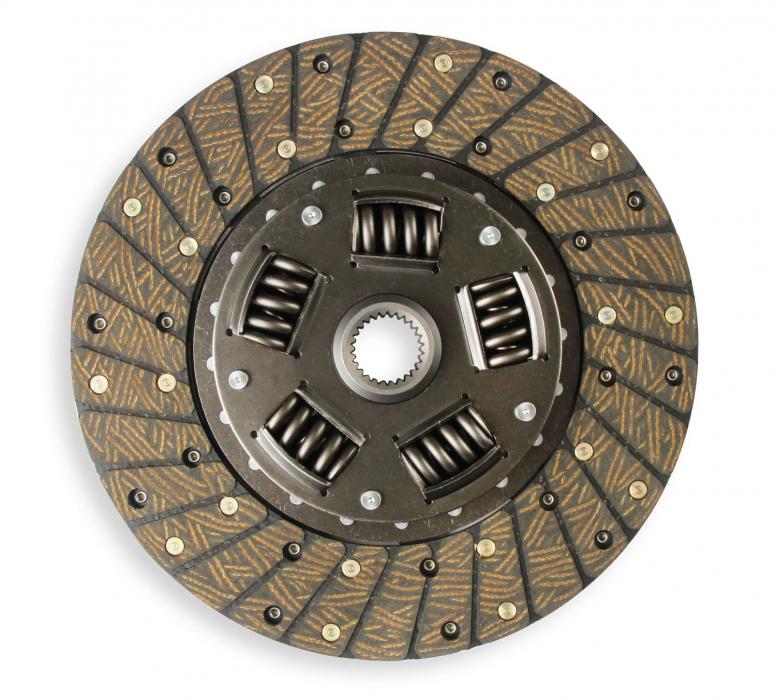

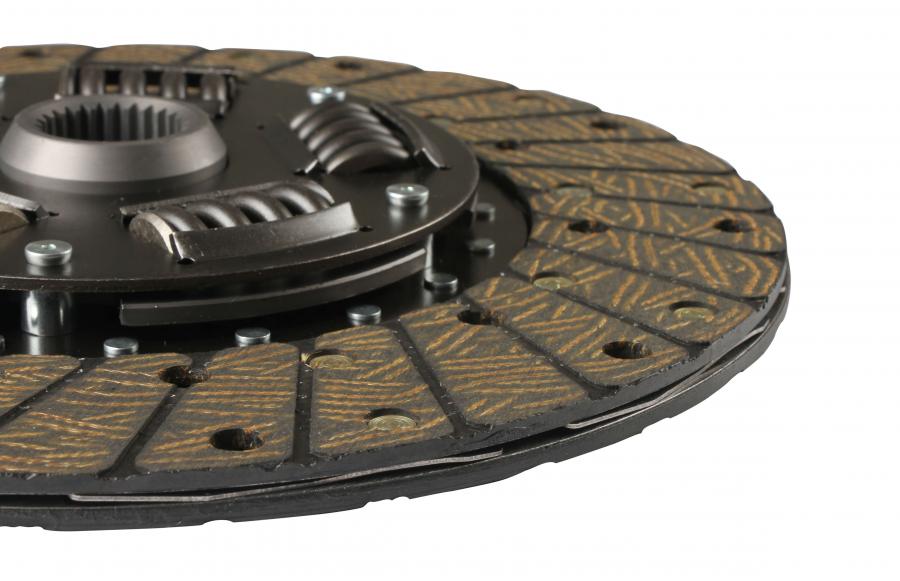

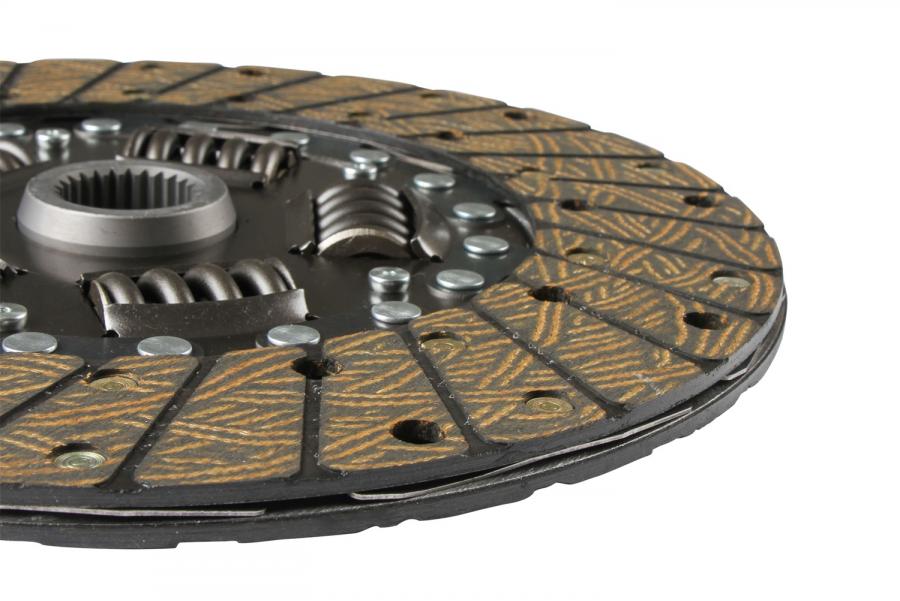

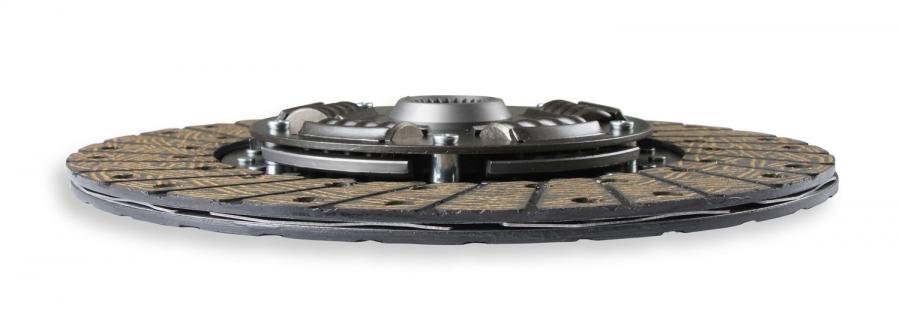

Disc Diameter | 10.5 |
Disc Material | Organic |
Disc Style | Spring Hub |
Emission Code | 5 |
Input Shaft Diameter | 1-1/8 in. |
Input Spline | 26 |
Max Horsepower Rating | 450 |

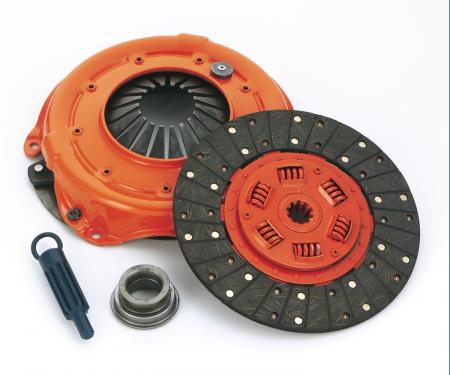

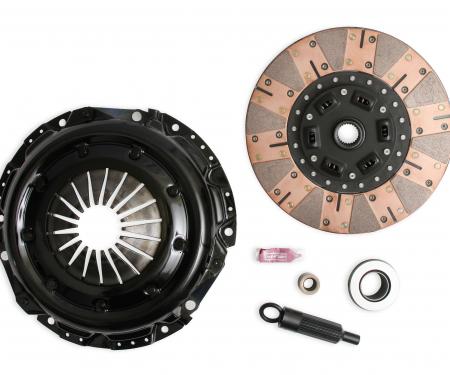

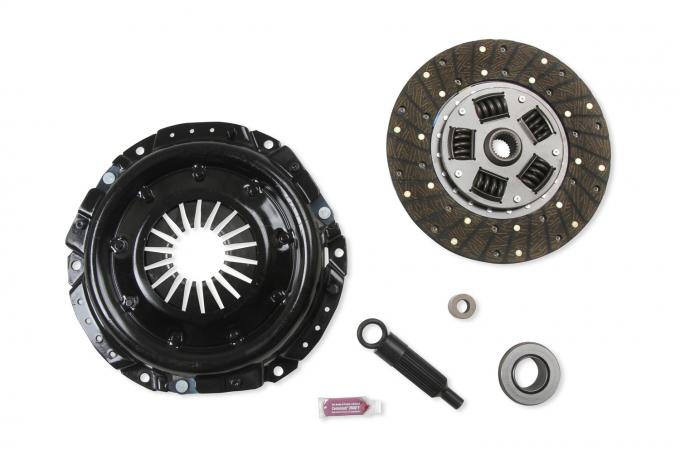

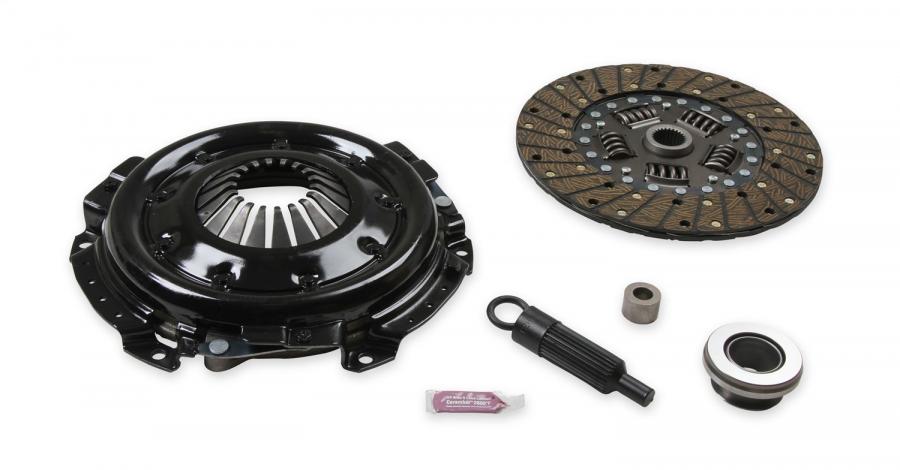

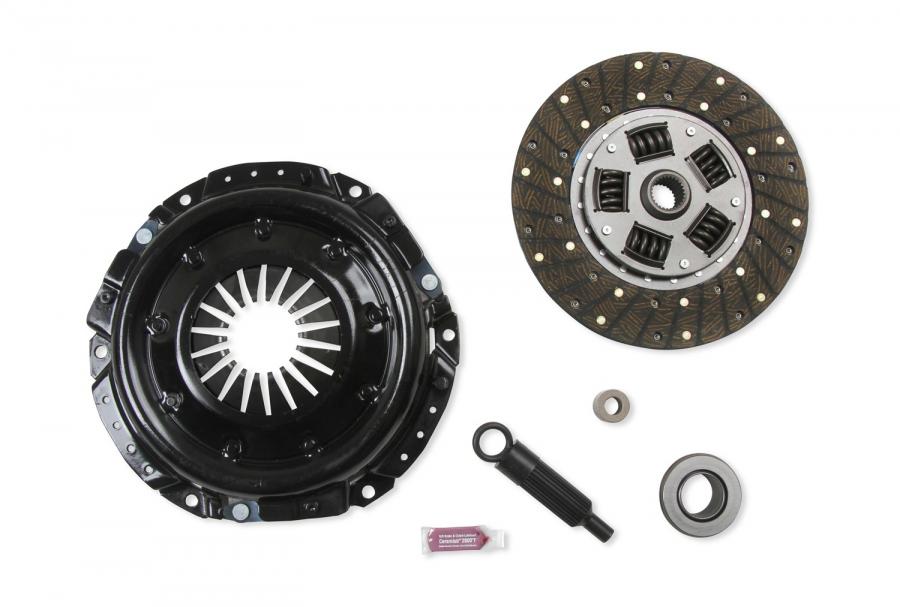

Part Type | Clutch Kit |
Pilot Bushing Included | No |

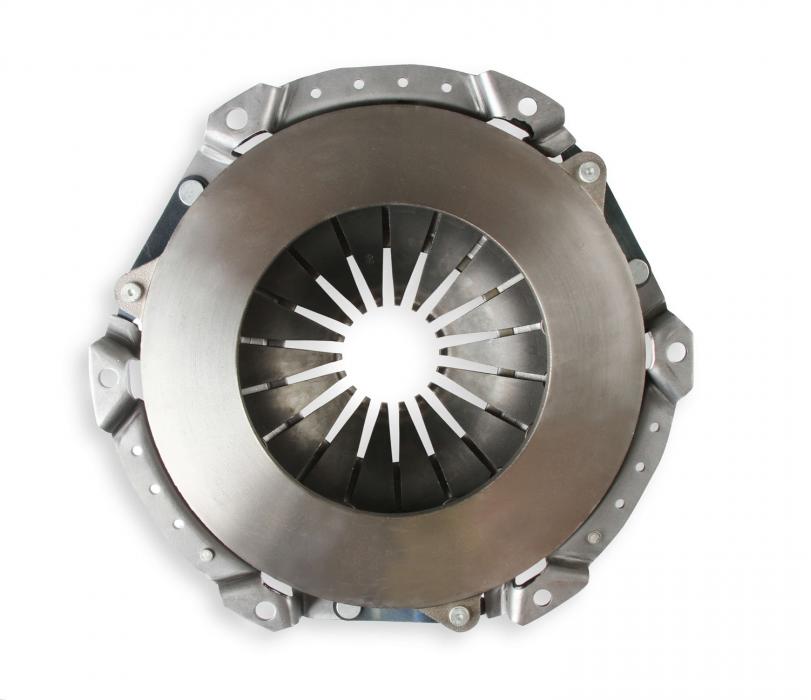

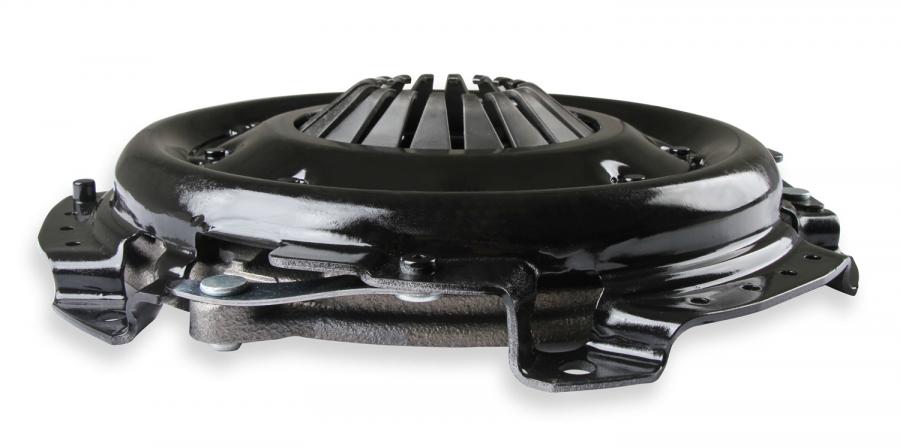

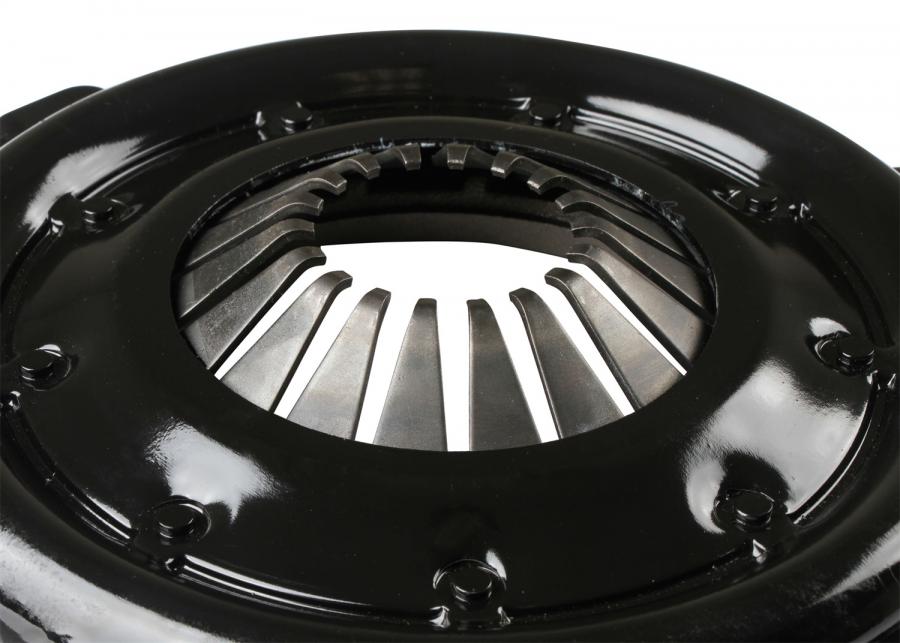

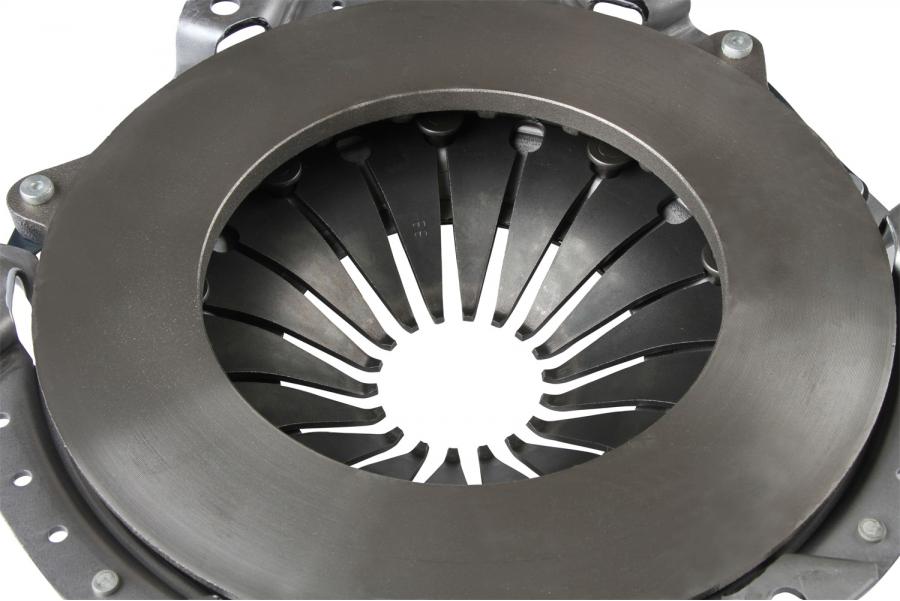

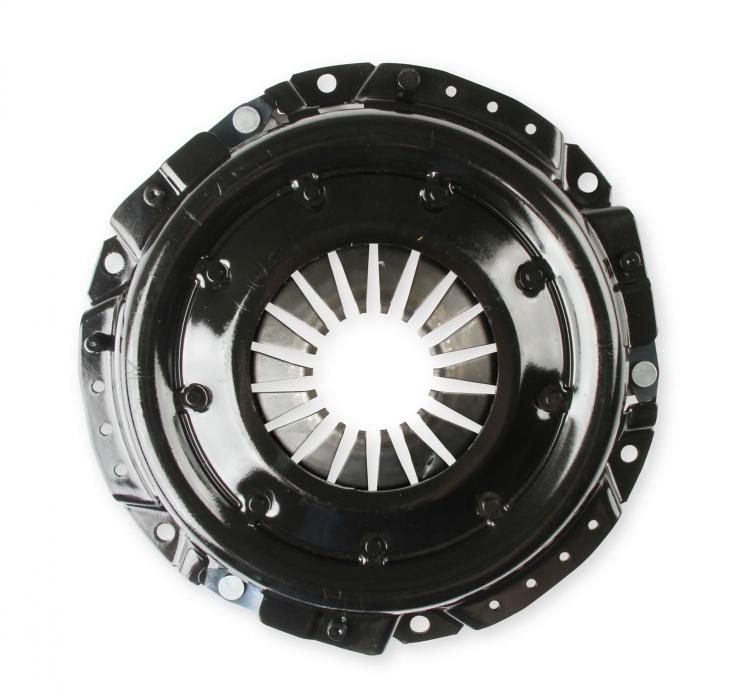

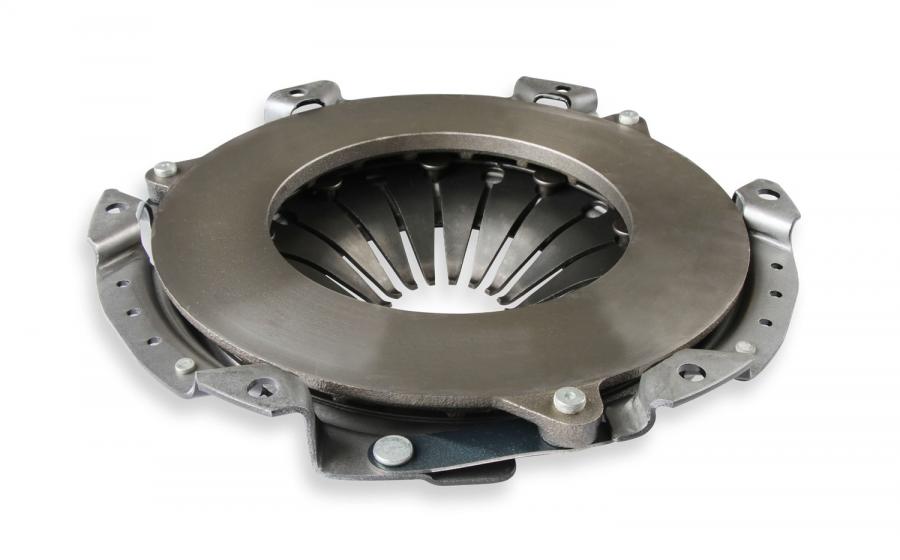

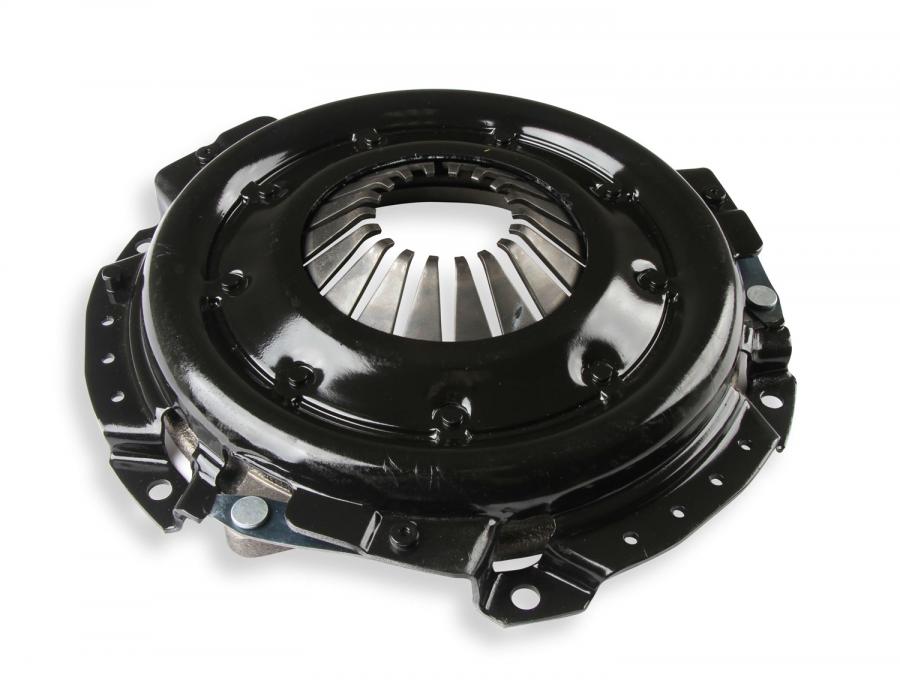

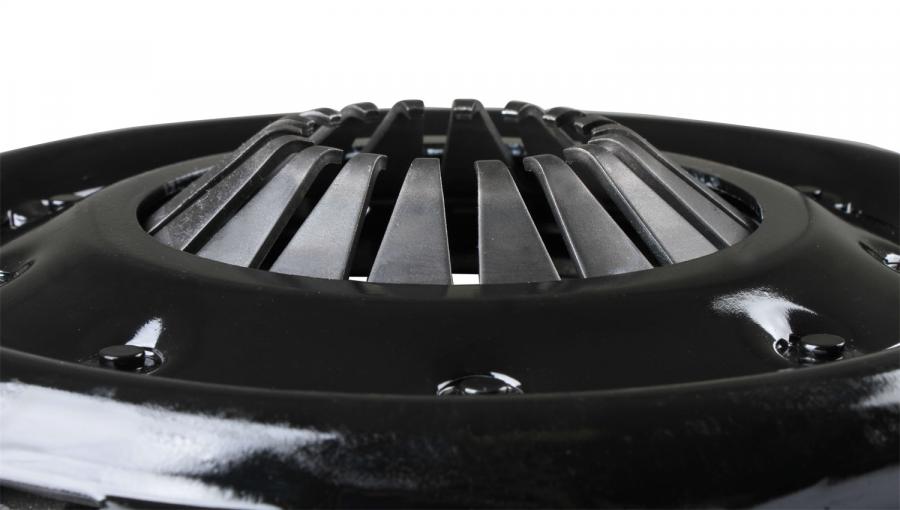

Pressure Plate Style | Diaphragm |
Product Type | Clutch Kits |
Proposition 65 | www.P65Warnings.ca.gov |

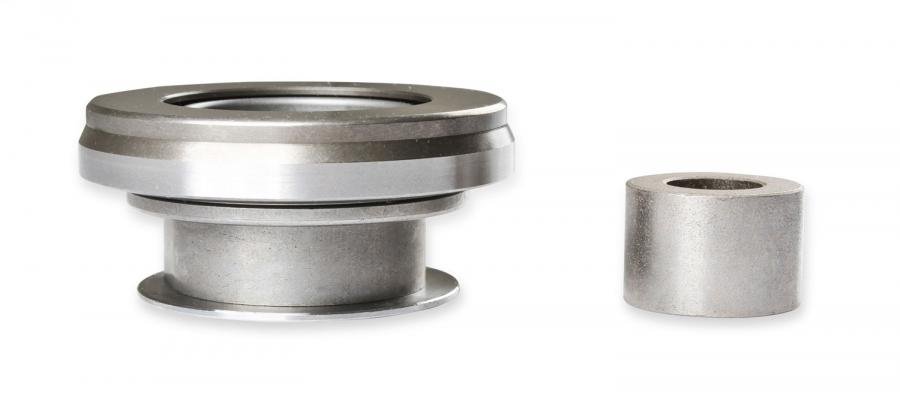

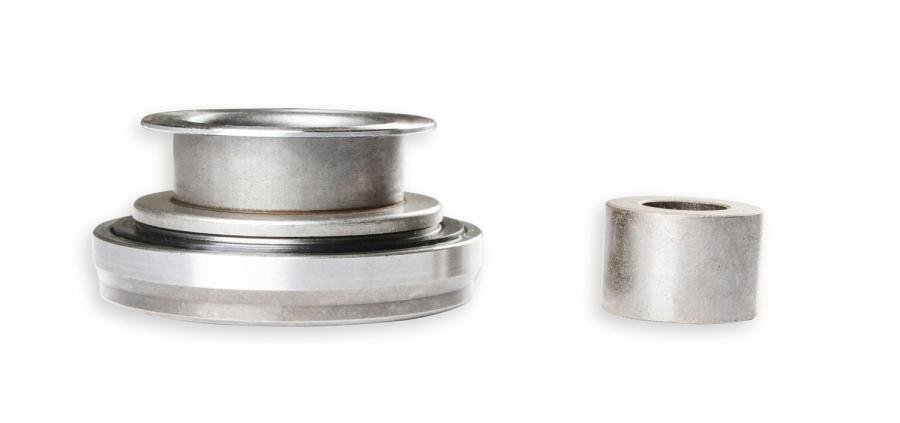

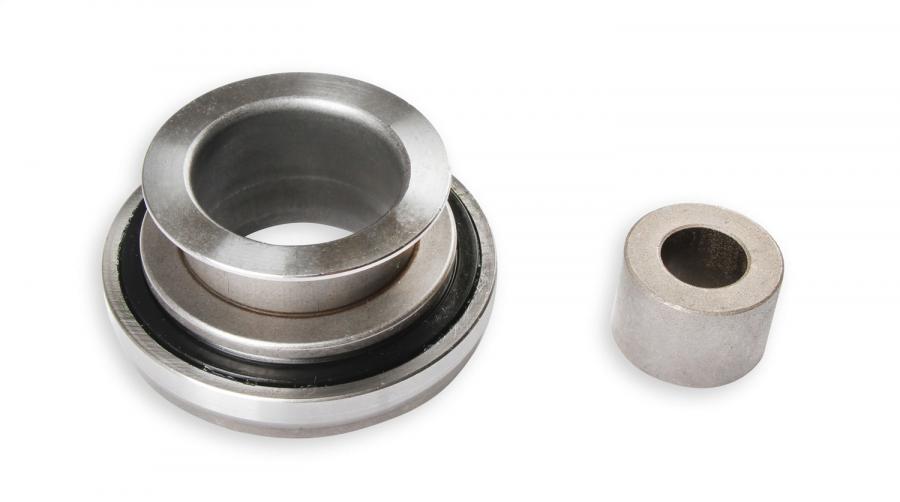

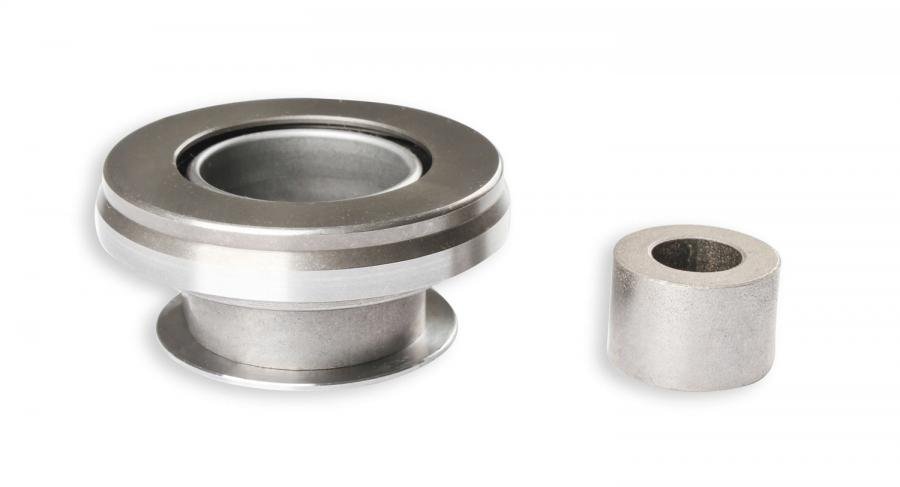

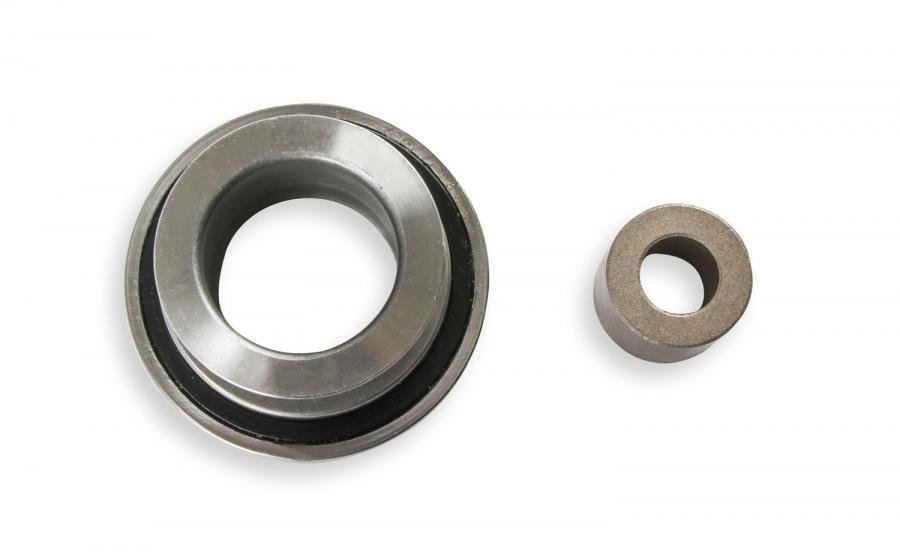

Throwout Bearing I.D. (inches) | 1.380 |
Throwout Bearing Included | Yes |
Warranty | Limited 90 Day Warranty |
