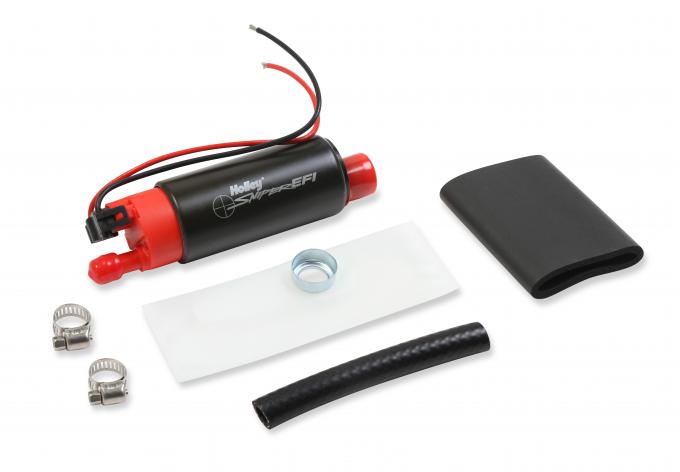

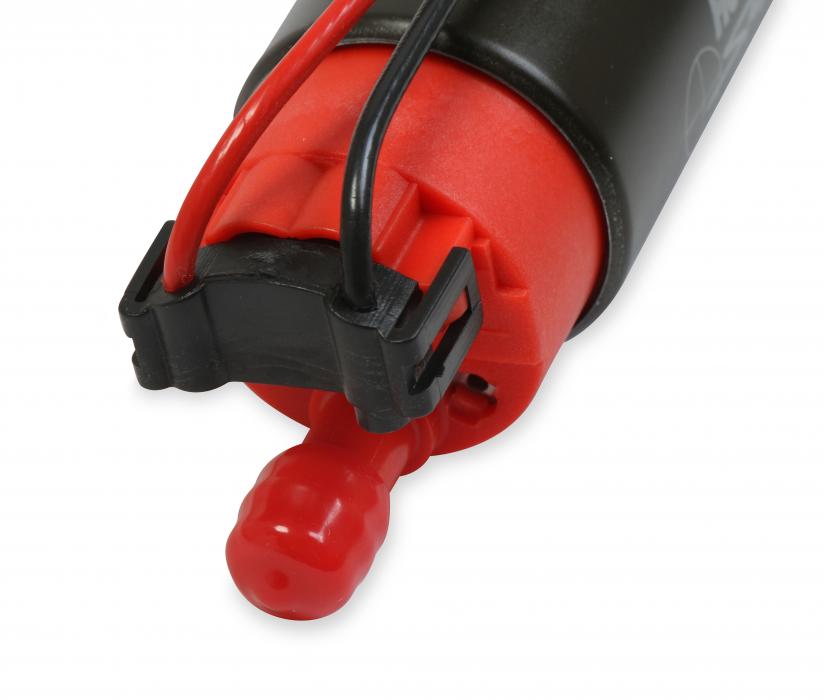

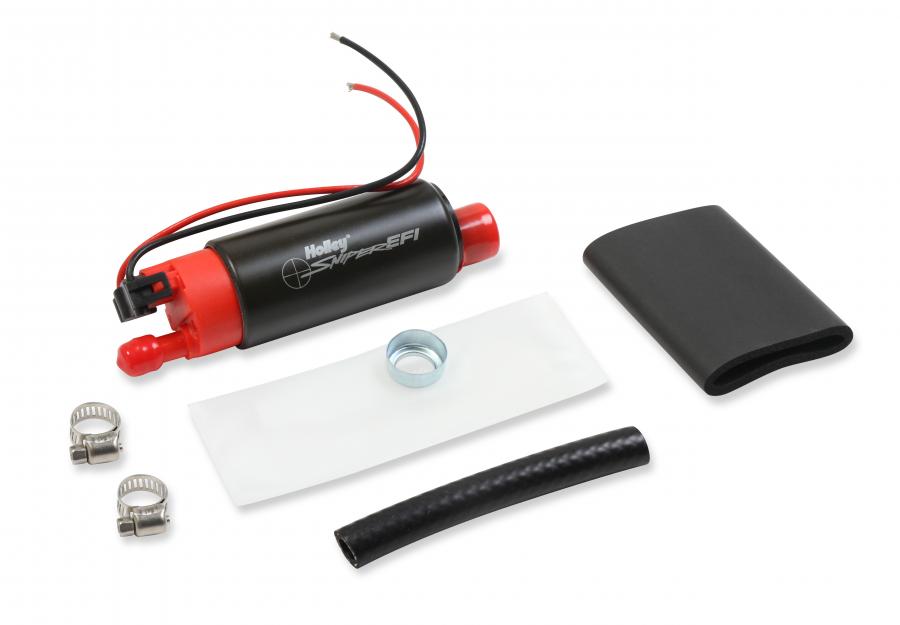

The new Sniper 340 LPH E85 fuel pump is a high output, in tank electric fuel pump that fits the most popular EFI applications. The pump can be regulated to support carbureted systems as well. All four models of the pump are compatible with gasoline or E85 and are designed for applications requiring more fuel flow while utilizing the factory O.E. lines and mounting brackets. The 340 LPH fuel pump can also be used as a universal replacement or upgrade for aftermarket applications that require more fuel flow to support additional horsepower while using power adders such as Nitrous, Turbo and Superchargers. Comes complete with installation hardware kit. (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet)
Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Applications:
General Motors
Grand National / Regal 1982-1987
Camaro 5.0L & 5.7L 1985-1992
Corvette 5.0L & 5.7L 1982-1996
GM Cars & Trucks 1985-1992
305 (5.0L) & 350 (5.7L) 87-97
S10, S15, Sonoma, Blazer, Envoy 82-95
Firebird 5.0L & 5.7L 1985-1992
Fiero 2.8L 1985-1986
Cyclone 1991-1992
Typhoon 1992-1993
Saturn SC,SL,SW 1997-2002
Features:
- Inlet filter meets or exceeds original equipment specifications and provides improved filtration/durability
- Compact enough to fit in existing hanger assemblies without modification
- Complete kit with all drop parts, accessories and installation instructions
- 340 LPH E85 Compatible
- Designed for in-tank use only
- Perfect upgrade for aftermarket pumps like our Retrofit EFI Modules when more fuel is needed with turbos or nitrous
- Can be used with carbureted or EFI applications
***The Holley 19-369 fuel pump supplies more pressure than a factory GM TBI injection is capable of supporting. However, it will fit in the factory pump hanger for the applications listed. It can be used with factory TPI injection, aftermarket EFI conversions and engine swap conversions such as the GM LS engine.
Diameter: 1.535"
Length (Including outlet barb): 5.180"
Installation Notes:
***The Holley 19-369 fuel pump supplies more pressure than a factory GM TBI injection is capable of supporting. However, it will fit in the factory pump hanger for the applications listed. It can be used with factory TPI injection, aftermarket EFI conversions and engine swap conversions such as the GM LS engine.
Diameter: 1.535"
Length (Including outlet barb): 5.180"
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
Engine |
| Chevrolet |
Corvette |
1986 |
5.7L / 350 / V8 |
