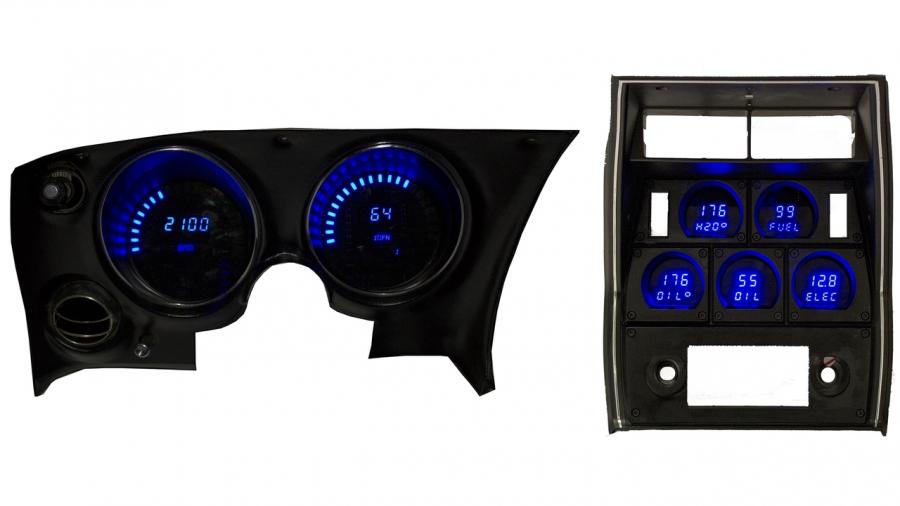

1968-1977 Corvette LED Digital Gauge Panel - DP2001

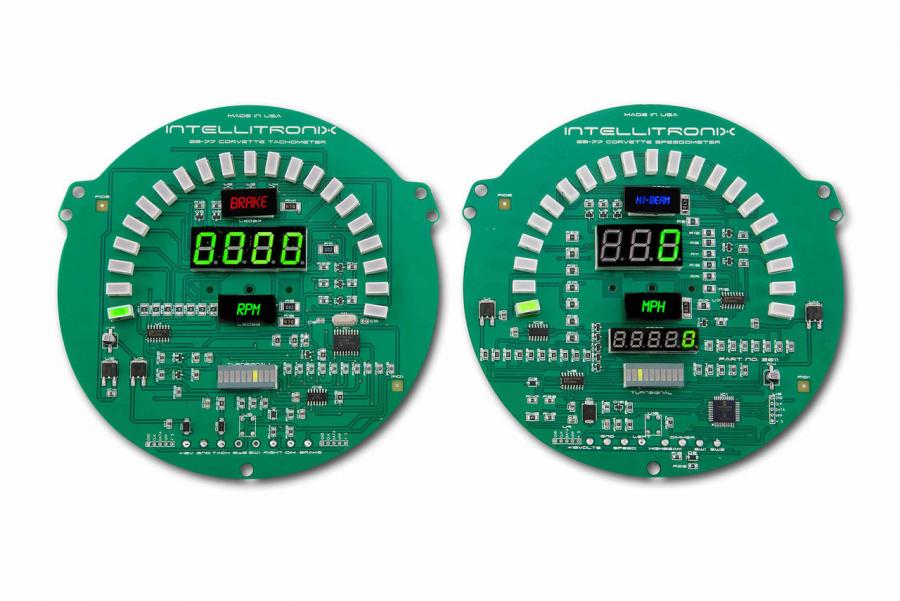

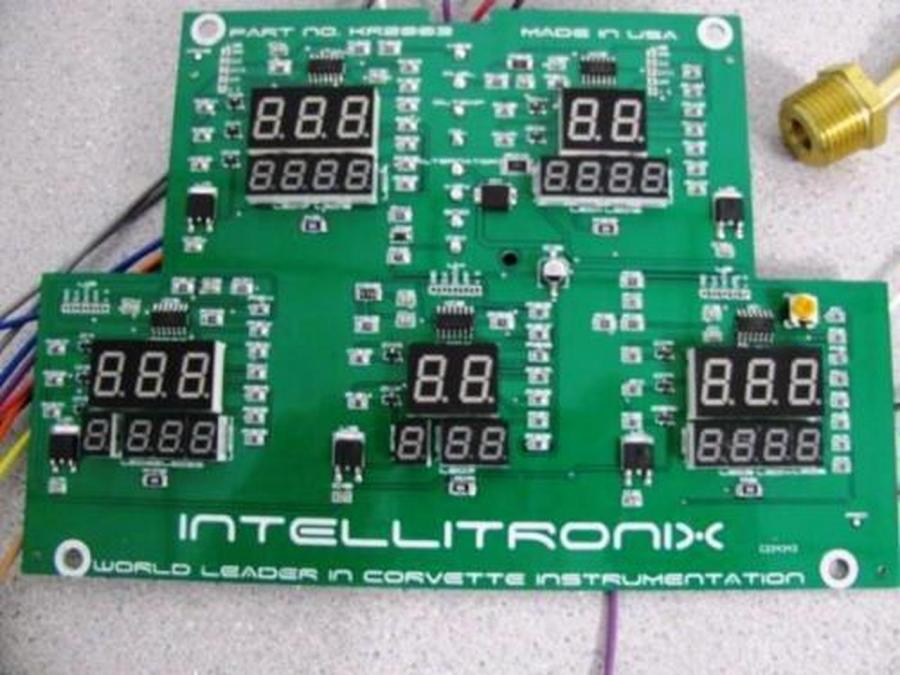

Cruise through time in your 1968-77 Corvette with Intellitronix direct fit 68-77 Corvette LED Digital Gauge Replacement Dash Panel. The 1968-1977 Corvette LED Digital Panel comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature sending units, oil pressure sending unit, and speedometer sending unit with senders and sensors for vehicles without electronic transmission or cruise control, and instructions for installation.
Dimensions: 3 3/8 inches in diameter and 1 1/2 inches deep.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1⁄4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999).
Water Temperature display reads 100-300°F range and includes sending unit S8013. Please add a note at checkout if you need a 3/8" bushing, because we send the more common 1/2" bushing. Otherwise, you will have to purchase the bushing on your own.
Oil Pressure reads 0-100 PSI range. Oil pressure sending unit is included.
Oil Temperature reads 50-350°F degrees.
Voltmeter displays 7.0-25.5 volt range and no sending unit required.
Fuel Level displays Empty to Full in 1/4 increments and works with existing GM fuel level sending unit.
The panel features turn signals and high beam indicator making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price and Gauges for your very special classic vehicle.
Know Before You Buy!
If you have a LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4-cylinder, then please make a note at checkout letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
BEZEL NOT INCLUDED

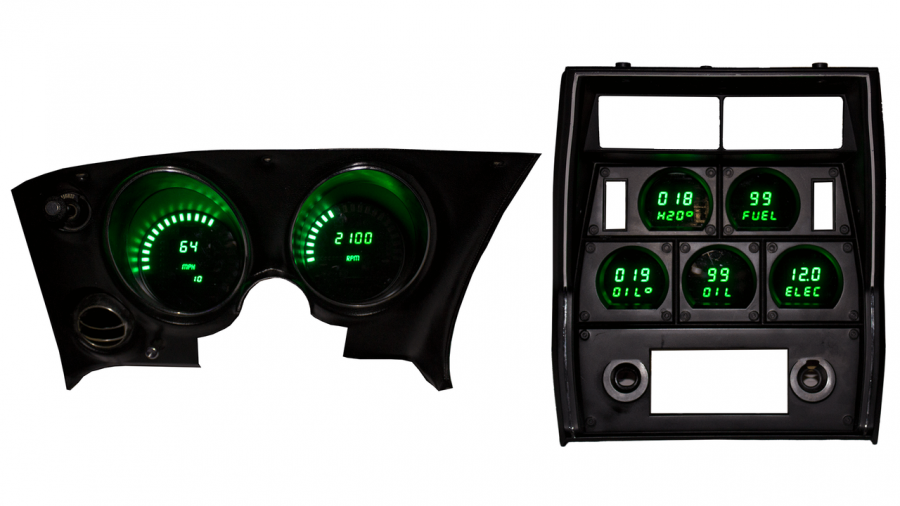

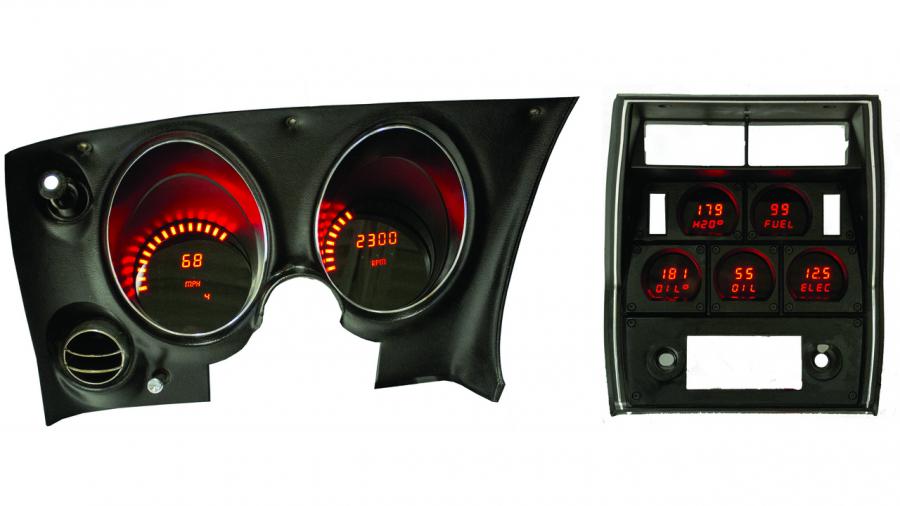

AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
Intellitronix Corp is an industry leader, manufacturing LED lighting and microprocessor-controlled LED products, which are first-class, energy-saving devices for the automotive electronic, marine, and recreational vehicle markets. Intellitronix has a wide range of best-selling automotive electronics, accessories, and digital gauges sold and distributed internationally. Intellitronix’s products are manufactured in a state-of-the-art facility in Eastlake, Ohio using top-quality materials and specialized equipment.
LEDs have become the powerhouse of the lighting world surpassing traditional light bulbs, television and computer screen illumination, being seen in trendsetting applications like headlights and taillights in cars, trucks, and daytime running and off-road lighting. Not only does Intellitronix understands the power and importance of utilizing LEDs but has the genius and expertise to put this knowledge into practice.
In addition, Intellitronix products have dominated areas of the marine industry with the creation of a unique, more efficient GPS controlled marine speedometer, and its Prometheus Ignition System to guard against ignition failures. The RV market is benefiting from Intellitronix new 4-IN-1 Energy Management Multifunctional System (EMMS) for recreational vehicles. The 4-in-1 unit incorporates energy management and load shedding, a breaker panel, automatic transfer switch, automatic generator starter plus display unit, Bluetooth, WiFi and multiplexing capabilities.
| Make | Model | Years |
| Chevrolet | Corvette | 1968 - 1977 |
| Color | Red, Blue, Green, White |
| Speedometer & Temperature | MPH & Fahrenheit, KMH & Celsius |
| Warranty | LIFETIME FACTORY WARRANTY |
