Lakewood Bellhousing, Chevrolet 15000LKW

Lakewood Bellhousing, Chevrolet 15000LKW
Lakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKWLakewood Bellhousing, Chevrolet 15000LKW
$1,313.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)76 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 4010403
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

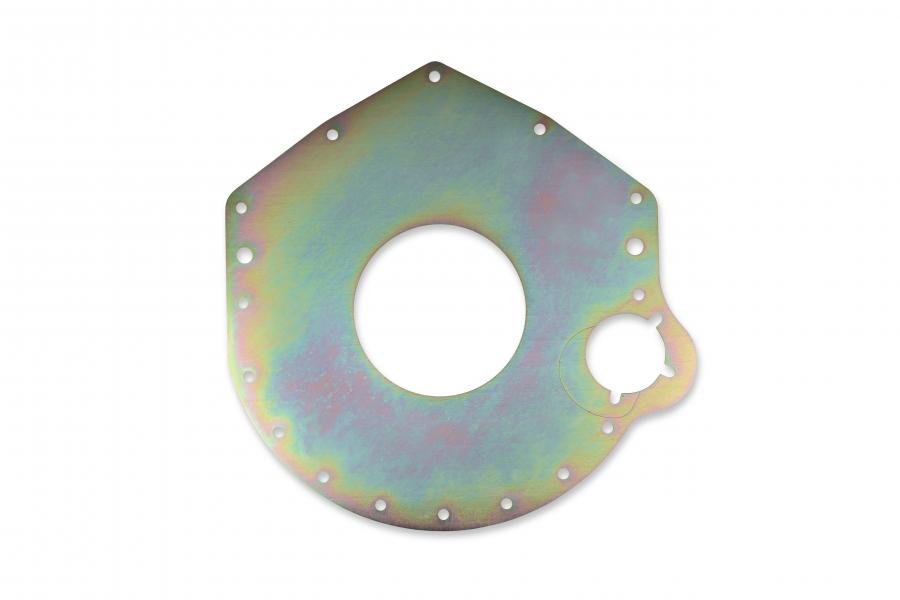

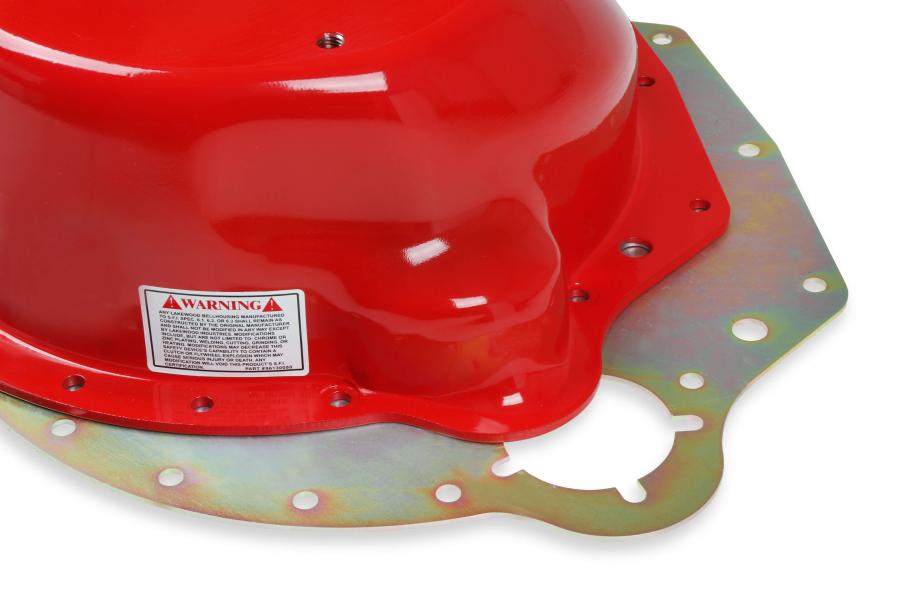

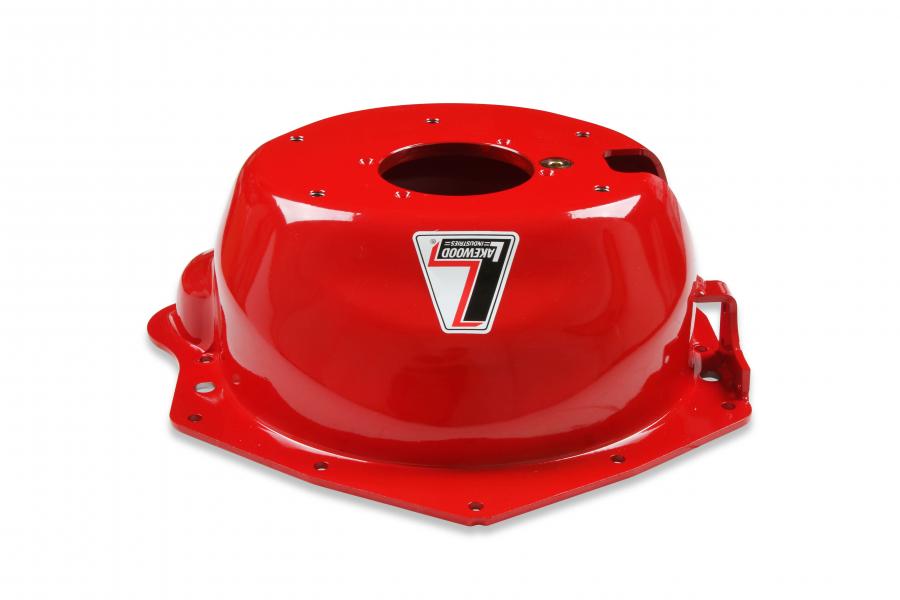

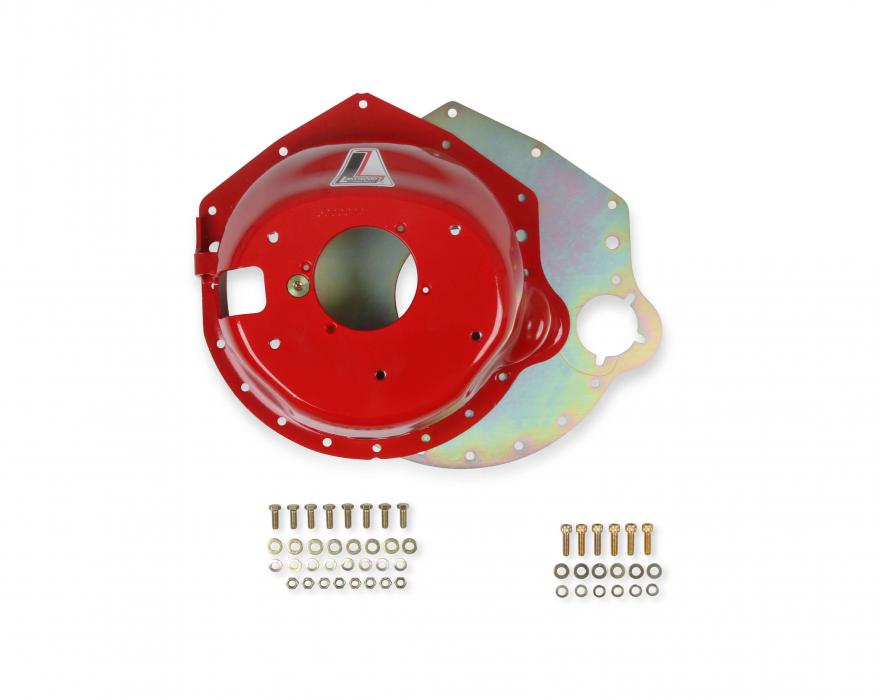

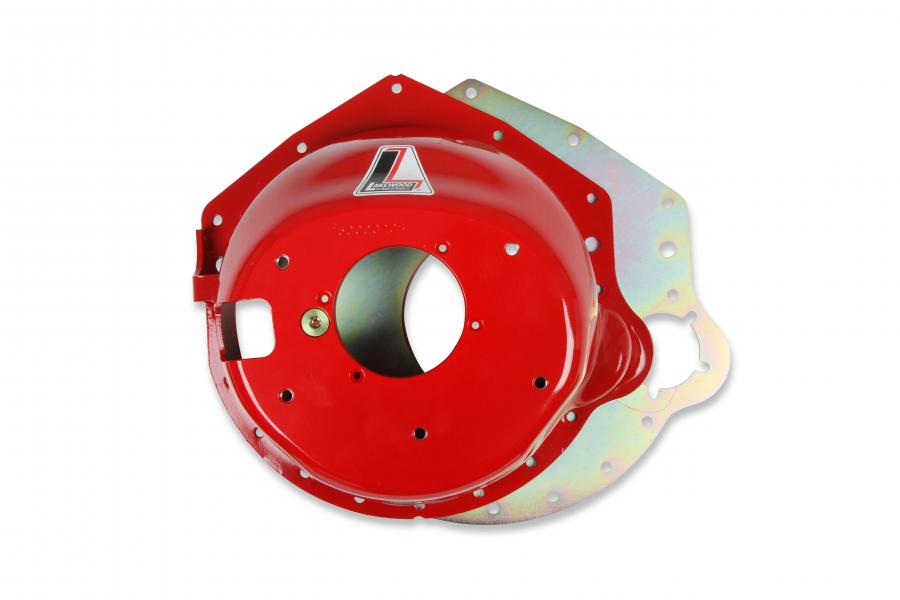

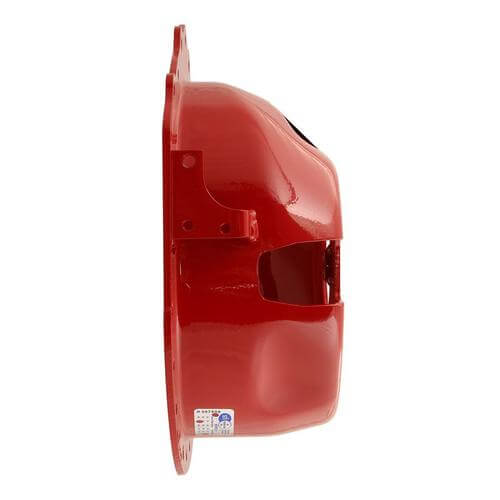

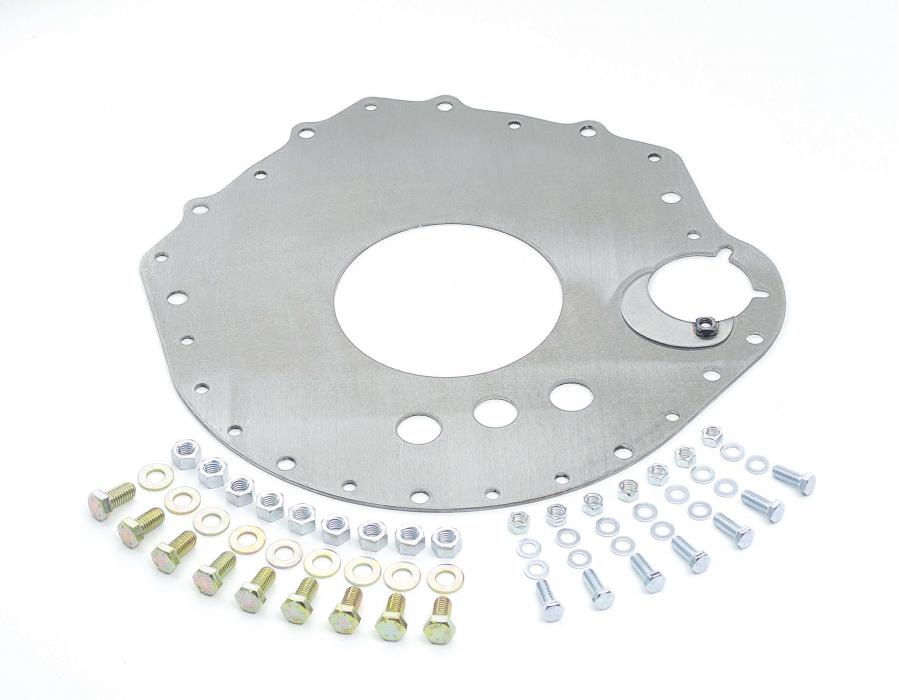

The Lakewood 15000LKW bellhousing connects Chevy small and big block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO and TKX transmissions. This bellhousing is hydro formed to fit 1958-1987 GM full and midsized cars, 1967-1981 F-body vehicles and 1968-1979 Nova. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. Comes complete with engine block plate and Grade 8 mounting hardware.
Features:
  • Designed For Mechanical Fork Linkage
  • Bellhousing Depth: 6.45 in

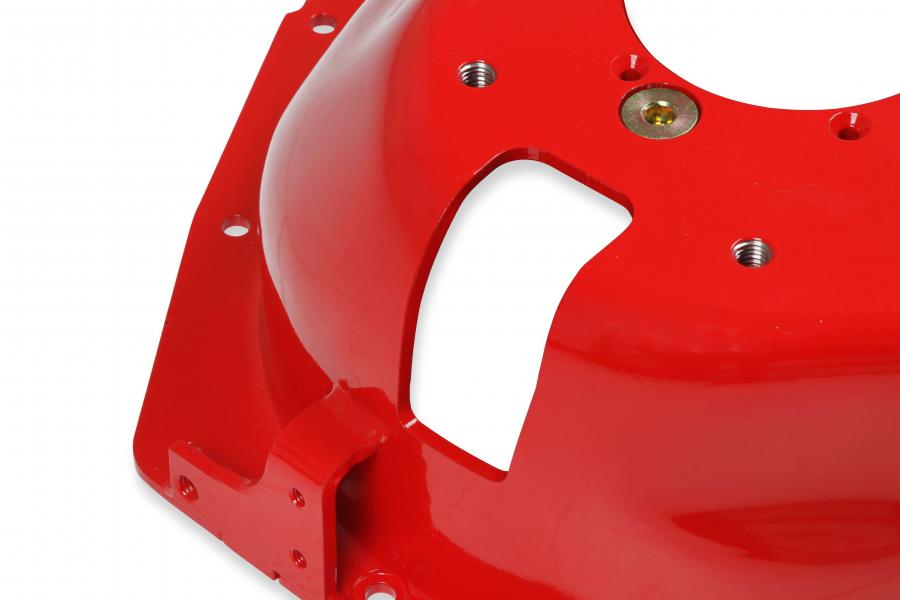

  • Clutch Fork Opening: 2.125 In X 3.3 In
  • Transmission Bore Diameter: 4.684 In
  • Hydro formed Construction

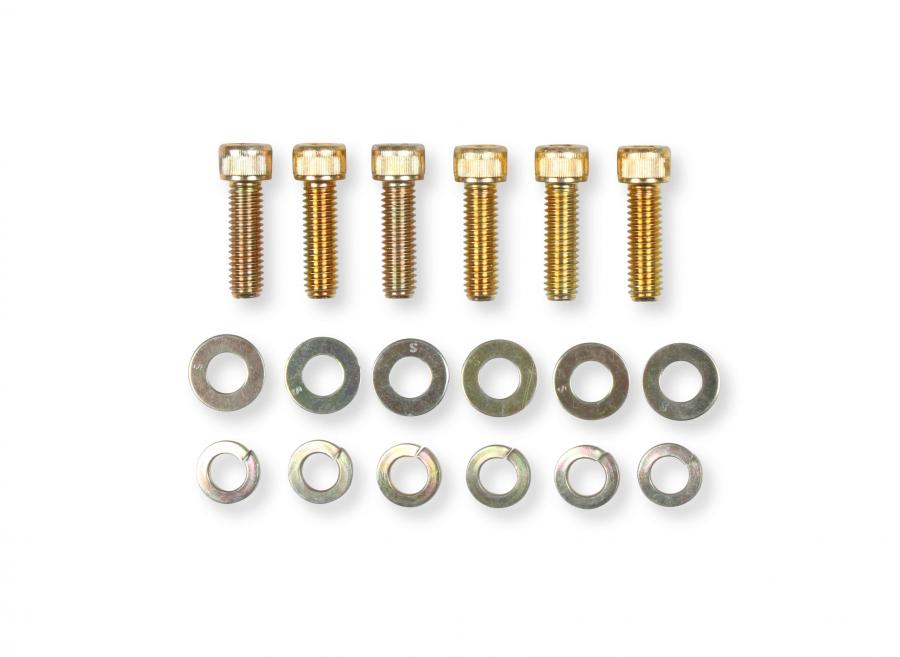

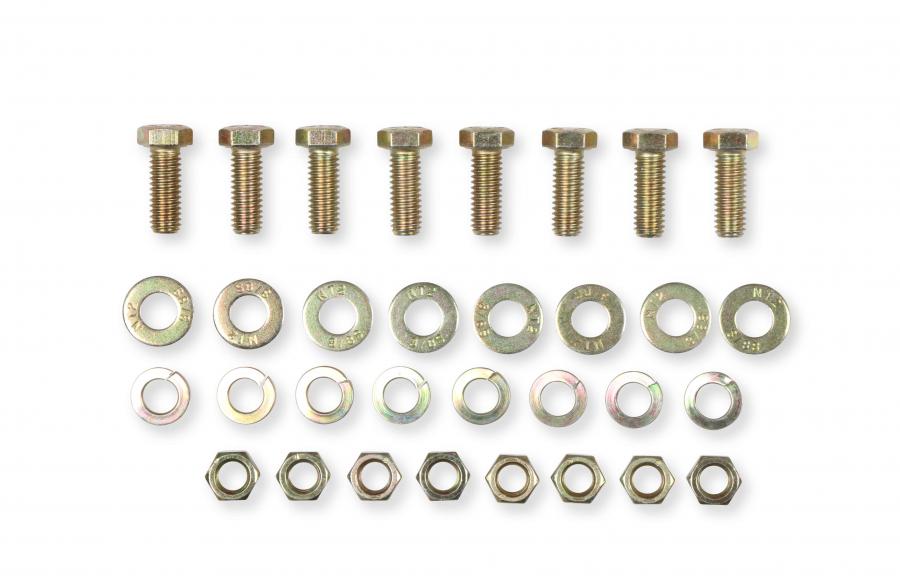

  • Includes Grade 8 Hardware
  • S.F.I. 6.1 Certification
  • Made In The USA
Note: Transmission Mounting Bolts Not Included
Installation Notes:
Note: Transmission Mounting Bolts Not Included Side Bracket Threads: 1 x 7/16-14 and 2 x 5/16-18

Downloads:

Download Name File Size
97140223rev.pdf344.53KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Engine
Chevrolet Corvette Base 1962 5.3L / 327 / V8
Chevrolet Corvette Base 1963 5.3L / 327 / V8
Chevrolet Corvette Base 1964 5.3L / 327 / V8
Chevrolet Corvette Base 1965 5.3L / 327 / V8
Chevrolet Corvette Base 1966 5.3L / 327 / V8
7.0L / 427 / V8
Chevrolet Corvette Base 1967 5.3L / 327 / V8
7.0L / 427 / V8
Chevrolet Corvette Base 1968 5.3L / 327 / V8
7.0L / 427 / V8
5.4L / 327 / V8
Chevrolet Corvette Base 1969 7.0L / 427 / V8
5.7L / 350 / V8
Chevrolet Corvette Base 1970 5.7L / 350 / V8
7.4L / 454 / V8
Chevrolet Corvette Base 1971 5.7L / 350 / V8
7.4L / 454 / V8
Chevrolet Corvette Base 1972 5.7L / 350 / V8
7.4L / 454 / V8
Chevrolet Corvette Base 1973 5.7L / 350 / V8
7.4L / 454 / V8
Chevrolet Corvette Base 1974 5.7L / 350 / V8
7.4L / 454 / V8
Chevrolet Corvette Base 1977 5.7L / 350 / V8
Chevrolet Corvette Base 1978 5.7L / 350 / V8
Chevrolet Corvette Base 1979 5.7L / 350 / V8
Chevrolet Corvette Base 1980 5.7L / 350 / V8
5.0L / 305 / V8
Chevrolet Corvette Base 1981 5.7L / 350 / V8
Chevrolet Corvette Base 1982 5.7L / 350 / V8
Chevrolet Corvette Base 1984 5.7L / 350 / V8
Chevrolet Corvette Base 1985 5.7L / 350 / V8
Chevrolet Corvette Base 1986 5.7L / 350 / V8
Chevrolet Corvette Base 1987 5.7L / 350 / V8
Chevrolet Corvette Collector's Edition 1982 5.7L / 350 / V8
Chevrolet Corvette Indianapolis 500 Pace Car 1978 5.7L / 350 / V8
Chevrolet Corvette Indianapolis 500 Pace Car 1986 5.7L / 350 / V8
Chevrolet Corvette Silver Anniversary Edition 1978 5.7L / 350 / V8
Chevrolet Corvette Stingray 1975 5.7L / 350 / V8
Chevrolet Corvette Stingray 1976 5.7L / 350 / V8

Specifications:

Clutch 11"
Color Red
Emission Code 5
Engine Chevrolet Small Block Gen I, Chevy Big Block V8
Engine Make Chevrolet
Flywheel 153 or 168 Tooth
Height 6.45
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans. Bore Diameter 4.685
Transmission T5 GM, Bert Racing, BorgWarner, Muncie, T10, TKX GM, TKO 500/600 GM, Brinn Racing, Falcon, Jerico, Richmond, Saginaw
Transmission Type Manual
