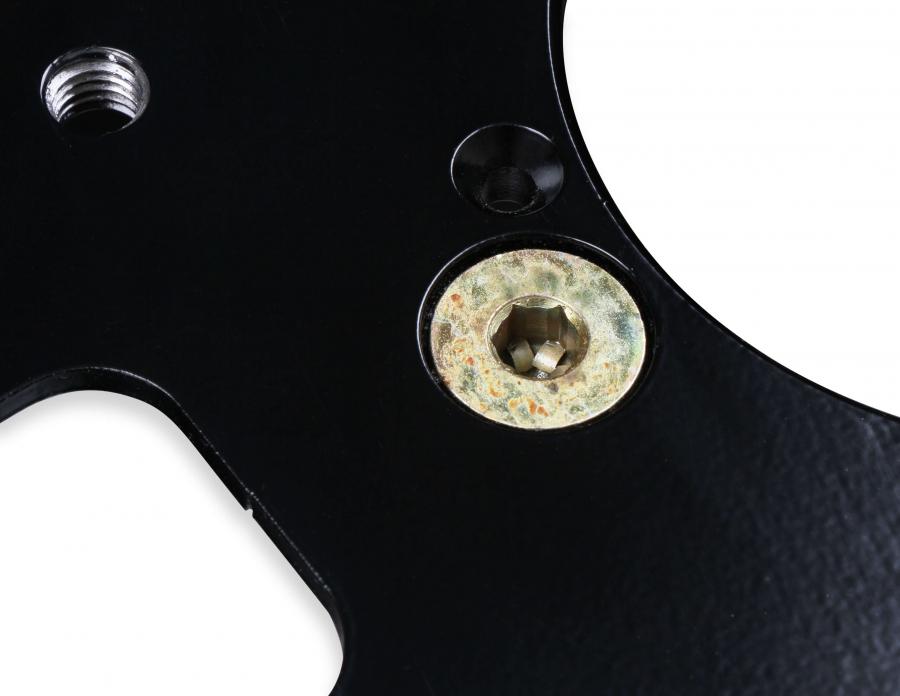

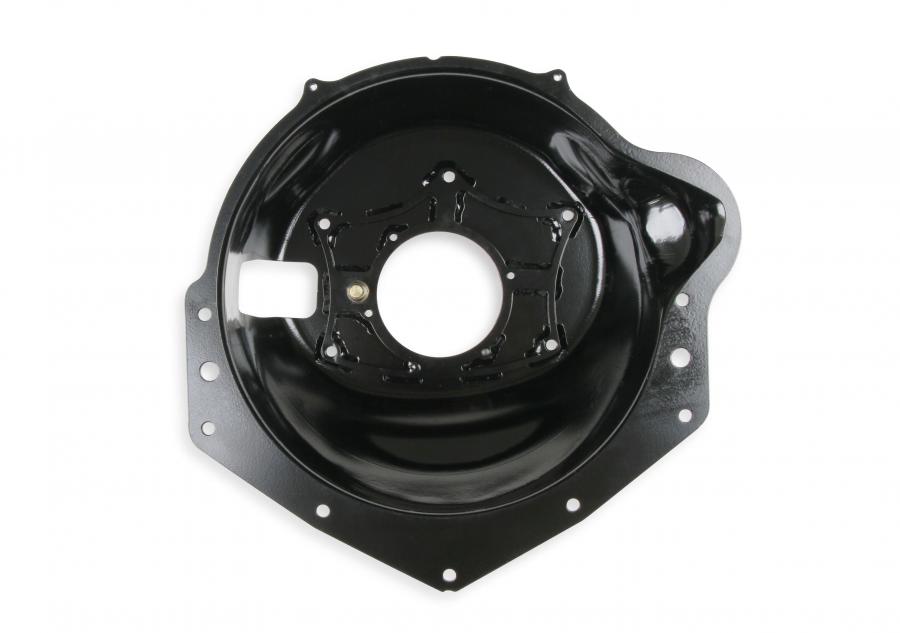

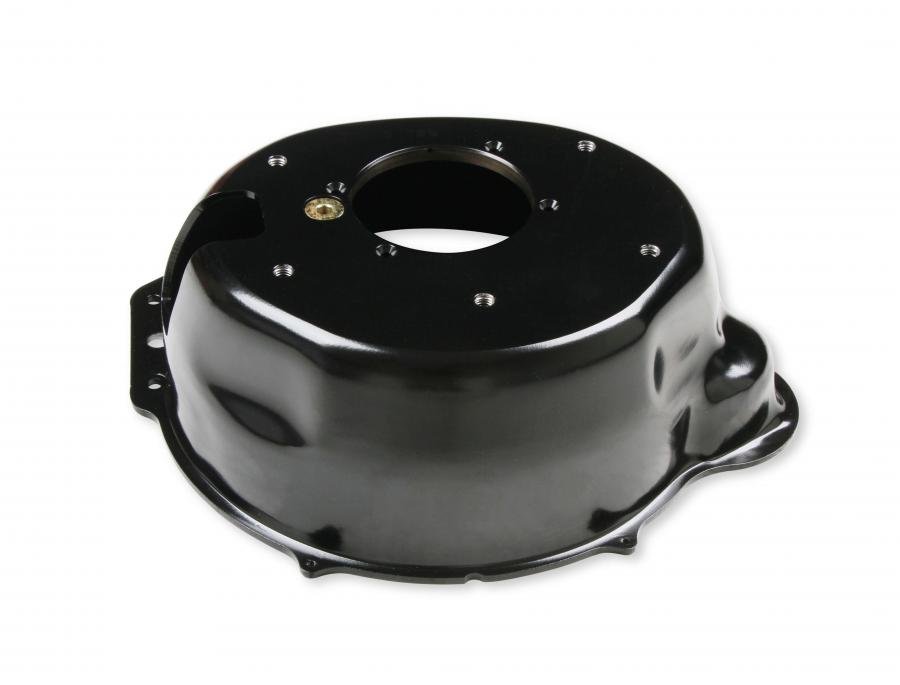

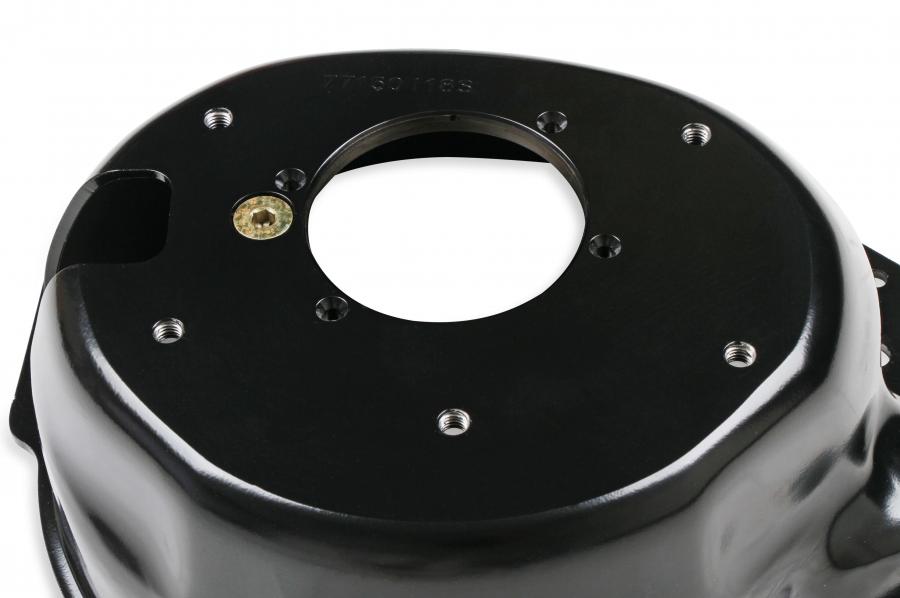

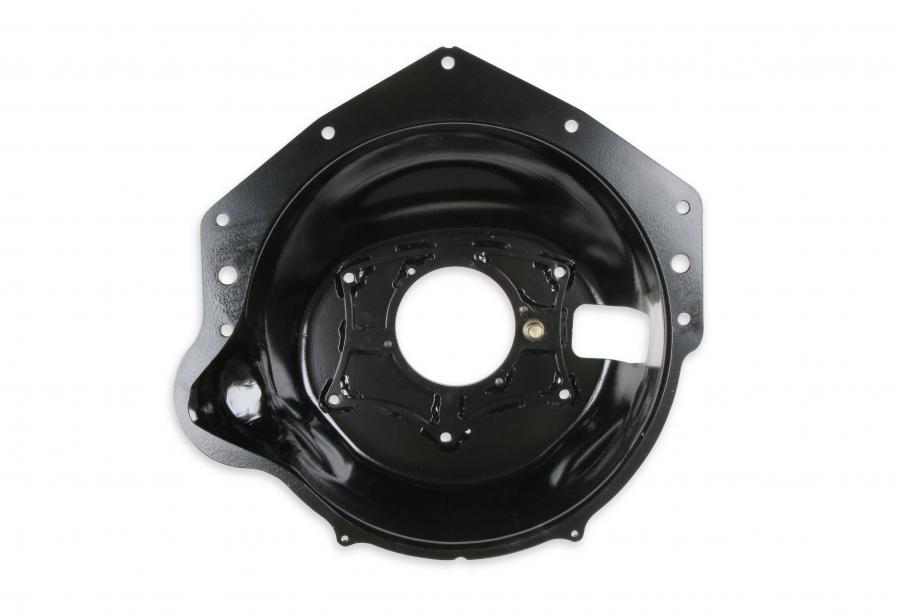

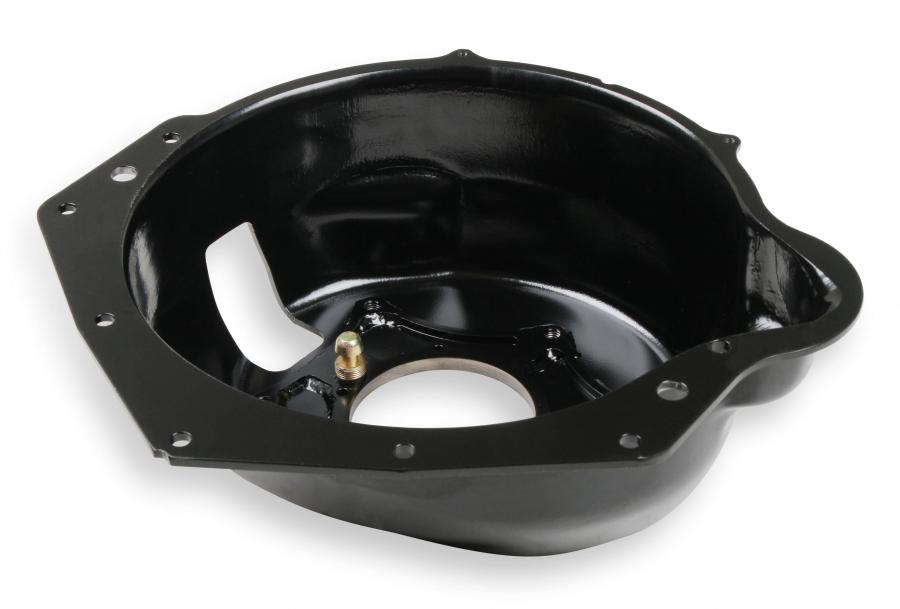

Lakewood Bellhousing, Chevy 77-150

Lakewood Bellhousing, Chevy 77-150
Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150Lakewood Bellhousing, Chevy 77-150
$1,164.99 ea
NEWARRIVING SOONEstimated Ship Date 12/09/2024 (If Ordered Today)13 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/20/2024
Model: 4010539
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

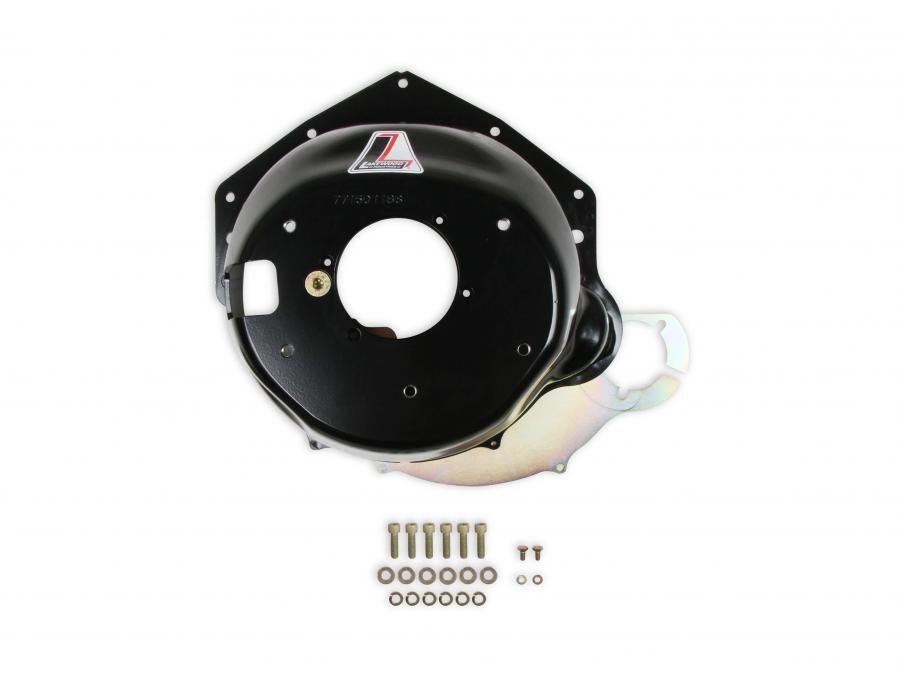

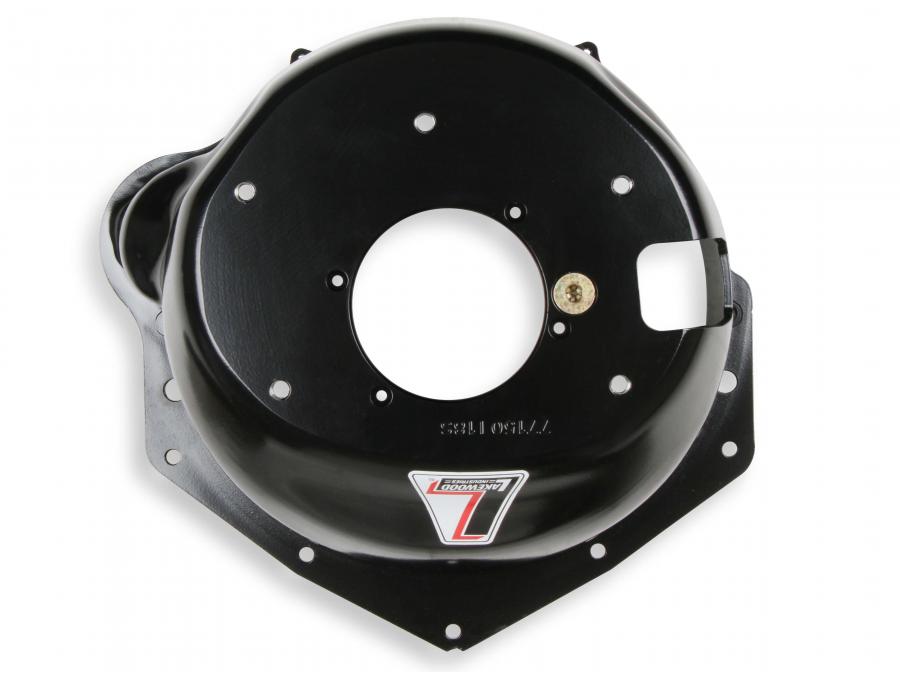

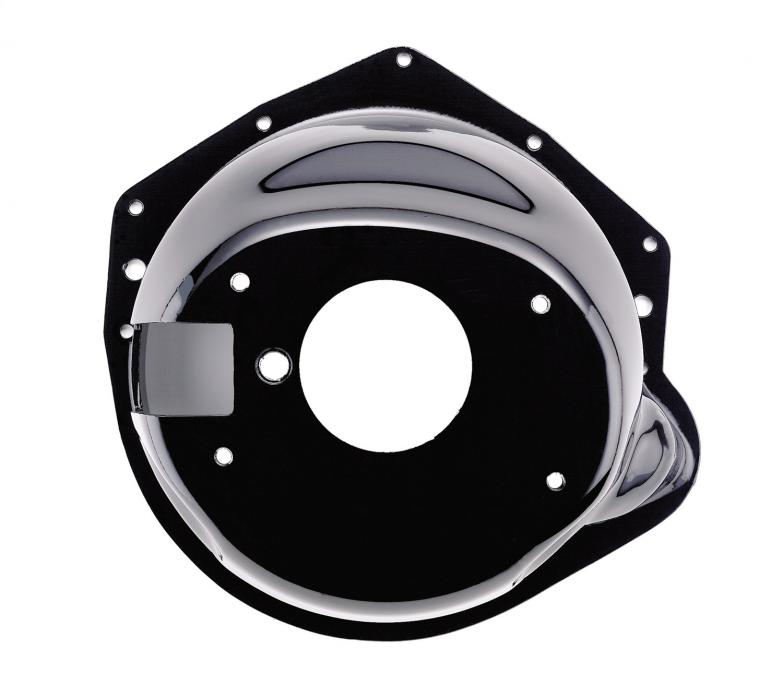

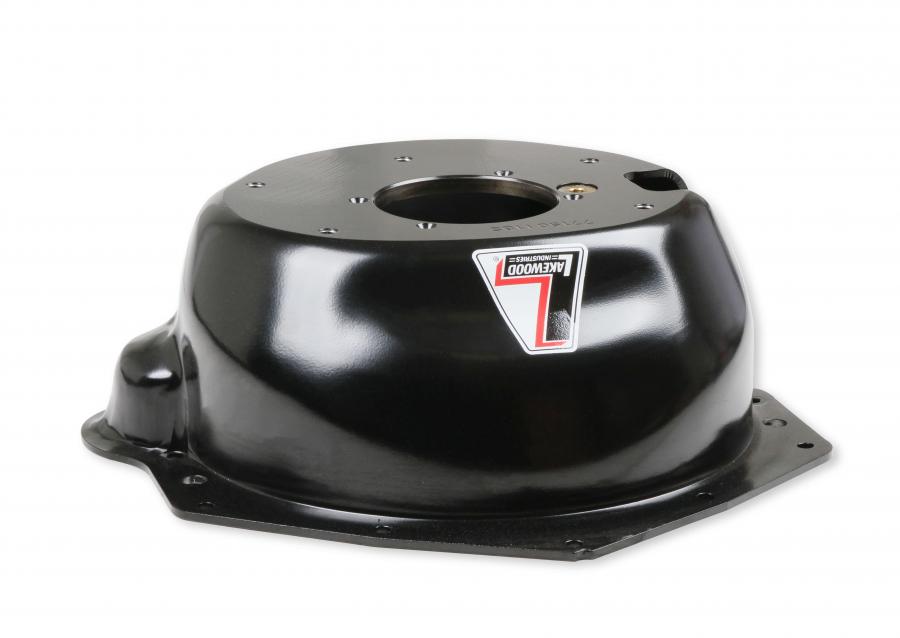

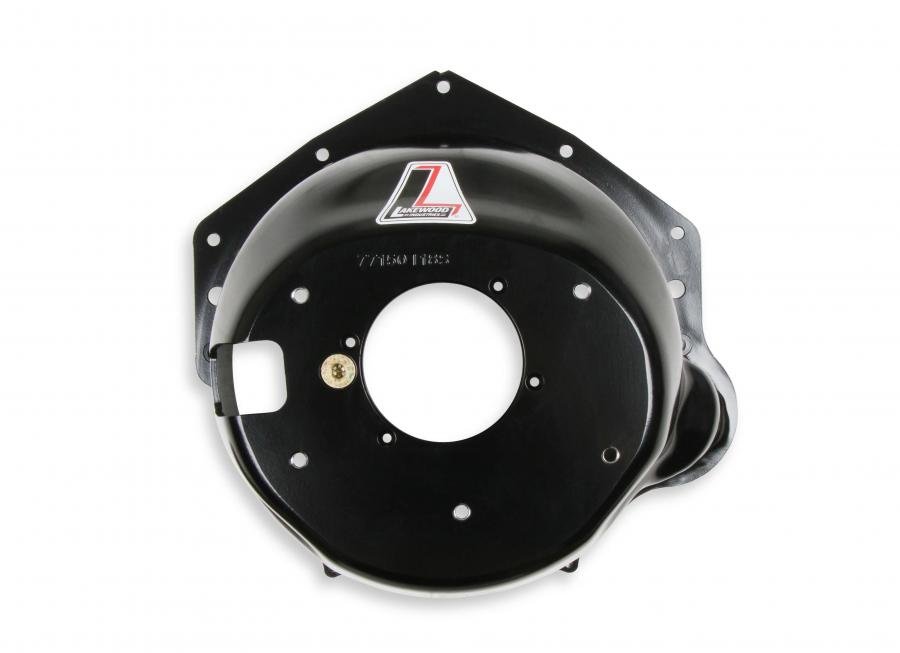

The Lakewood 77-150 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is designed to fit GM full and midsized vehicles from '58 - '87. This bellhousing is not S.F.I. certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The adapter bellhousing is an excellent choice for street rods, street machines, or truck applications where the use of a S.F.I. bellhousing is not necessary. This bellhousing does not include or accept an engine block plate.
Features:
  • Designed For Mechanical Fork Linkage
  • Bellhousing Depth: 6.312 in

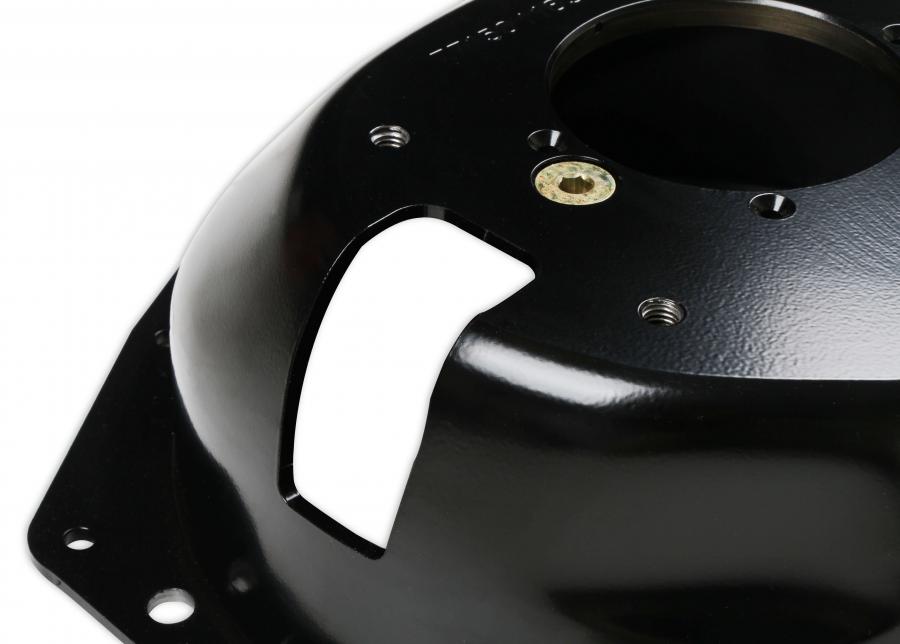

  • Clutch Fork Opening: 2.5 In X 3.75 In
  • Transmission Bore Diameter 4.684 In
  • Hydro formed Construction
  • Made In The USA
  • Works with 153 or 168 Flywheel

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Corvette 1958 4.6L / 283 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1959 4.6L / 283 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1960 4.6L / 283 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1961 4.6L / 283 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1962 5.3L / 327 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1965 6.5L / 396 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1966 7.0L / 427 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1967 7.0L / 427 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1968 7.0L / 427 / V8
5.4L / 327 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1969 7.0L / 427 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1970 7.4L / 454 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1971 7.4L / 454 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1972 7.4L / 454 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1973 7.4L / 454 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1974 7.4L / 454 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1975 5.7L / 350 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1976 5.7L / 350 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1977 5.7L / 350 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1978 5.7L / 350 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1979 5.7L / 350 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1980 5.0L / 305 / V8
5.7L / 350 / V8		 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;
Chevrolet Corvette 1981 5.7L / 350 / V8 ENGINE TO TRANSMISSION ADAPTER; 4.684 IN. BORE DIA.; 6.312 IN. DEPTH; 2.50X3.75 IN. FORK OPENING; GM MUNCIE/SAGINAW BW T-10 TRANS.; FITS W/BLOCK MOUNTED STARTER;

Specifications:

Clutch Diameter 11"
Clutch Operation Hydraulic or GM Mechanical
Color Black
Emission Code 5
Engine Chevrolet Small Block Gen I, Chevy Big Block V8
Engine Make Chevrolet
Flywheel 153/168 Tooth
Height 6.3"
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Product Type Bellhousing
SFI Approved No
SFI Certification NONE
Trans. Bore Diameter 4.685
Transmission BorgWarner, Muncie, T10, TKX GM, TKO 500/600 GM, Saginaw
Transmission Type Manual
Weight 32Lbs
