Mr. Gasket Ultra-Seal Head Gasket 1134G

Mr. Gasket Ultra-Seal Head Gasket 1134G
$92.99 ea
NEWARRIVING SOONEstimated Ship Date 12/10/2024 (If Ordered Today)4 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/22/2024
Model: 4010767
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

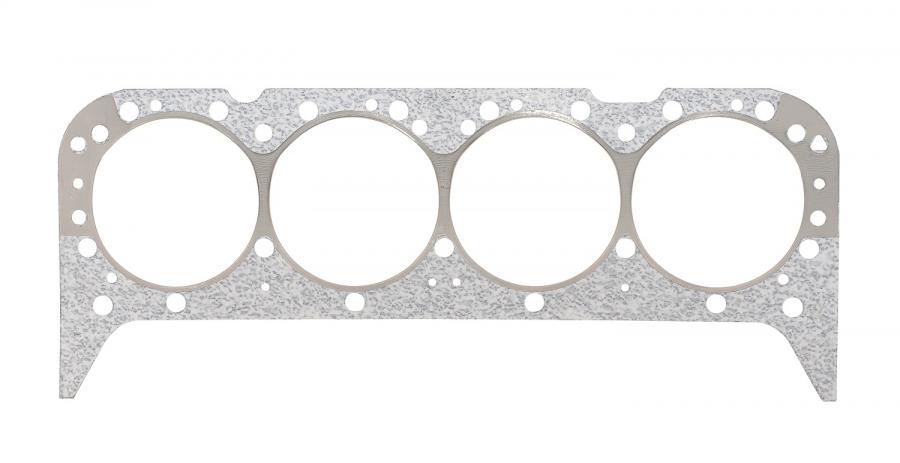

Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.

Gasket bore 4.100 inch, Compressed thickness 0.028 inch
Features:
  • Five layer (graphite core/perforated steel outer layers) composite construction
  • Graphite core is excellent transfering heat away from hot spots in head preventing gasket burn-out.
  • Provides excellent stability, compressibility and high temperature endurance
  • Coated with high temperature silicone to ensure sealing of engine fluids
  • Will not brinell (indent) aluminum cylinder heads
  • For high performance street, drag race and oval track use

Downloads:

Download Name File Size
97140221.pdf145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Chevrolet Corvette 1957 4.6L / 283 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1958 4.6L / 283 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1959 4.6L / 283 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1960 4.6L / 283 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1961 4.6L / 283 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1962 5.3L / 327 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1969 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1970 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1971 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1972 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1974 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1975 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1976 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1977 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1978 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1979 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1980 5.7L / 350 / V8
5.0L / 305 / V8		 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1981 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1982 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1984 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1985 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1986 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1987 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1988 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1989 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1990 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Chevrolet Corvette 1991 5.7L / 350 / V8 HEAD GASKET; FLEXIBLE GRAPHITE CORE; ELASTOMER COATED; 4.10 IN. GASKET BORE; 0.028 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;

Specifications:

Application Small Block Chevy
Compressed Thickness .028 inch
Compression Ratio Up to 14:1
Emission Code 5
Engine Chevrolet Small Block Gen I
Gasket Bore 4.100 inch
Gasket Line Ultra-Seal
Material Graphite Steel
Packaging Retail
Part Type Engine Cylinder Head Gasket
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited 90 Day TX, Limited 90 Day
Weight 0.5000
